Texas Instruments LM5036RJBR

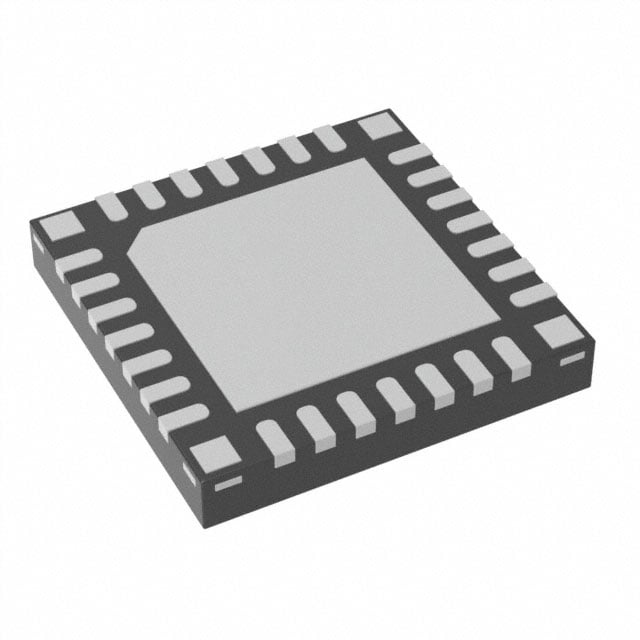

Image shown is a representation only
Manufacturer
Manufacturer No
LM5036RJBR
Quantity
48
Availability
In Stock
Package
28-WFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
HALF BRIDGE CONTROLLER W/INTEGRA
Detailed Description
Half-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 28-WQFN (5x5)
DataSheet
Function
Step-Up/Step-Down
Topology
Half-Bridge
Packaging
Tape & Reel (TR)
Clock Sync
Yes
Output Type
PWM
Part Status
Active
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Output Phases
2
Package / Case
28-WFQFN Exposed Pad
Control Features
Current Limit, Frequency Control, Ramp
Duty Cycle (Max)
50%
Number of Outputs
2
Base Product Number
LM5036
Output Configuration
Positive, Isolation Capable
Frequency - Switching
2MHz
Operating Temperature
-40°C ~ 125°C (TJ)
Synchronous Rectifier
Yes
Supplier Device Package
28-WQFN (5x5)
Voltage - Supply (Vcc/Vdd)
7.5V ~ 8.1V
| Attribute | Value |
|---|---|
| Function | Step-Up/Step-Down |
| Topology | Half-Bridge |
| Packaging | Tape & Reel (TR) |
| Clock Sync | Yes |
| Output Type | PWM |
| Part Status | Active |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Output Phases | 2 |
| Package / Case | 28-WFQFN Exposed Pad |
| Control Features | Current Limit, Frequency Control, Ramp |
| Duty Cycle (Max) | 50% |
| Number of Outputs | 2 |
| Base Product Number | LM5036 |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 2MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 28-WQFN (5x5) |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 8.1V |
