Texas Instruments LM3686TLE-AAED/NOPB

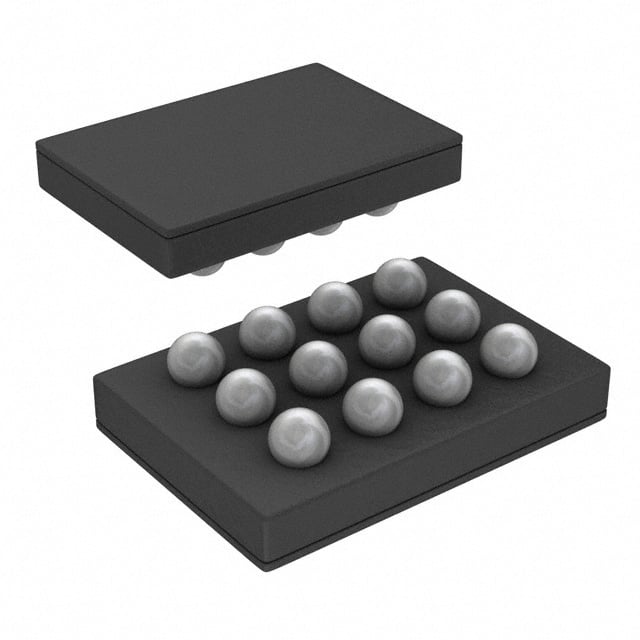

Image shown is a representation only
Manufacturer
Manufacturer No
LM3686TLE-AAED/NOPB
Package
12-WFBGA, DSBGA
Packaging
Tape & Reel (TR)
Description
IC REG TRPL BCK/LNR SYNC 12DSBGA
Detailed Description
PMIC - Voltage Regulators - Linear Switching 3 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (2) 3MHz 12-DSBGA
DataSheet
Topology
Step-Down (Buck) Synchronous (1), Linear (LDO) (2)
Packaging
Tape & Reel (TR)
Part Status
Obsolete
w/Sequencer
No
Manufacturer
Texas Instruments
w/LED Driver
No
w/Supervisor
No
Mounting Type
Surface Mount
Package / Case
12-WFBGA, DSBGA
Voltage - Supply
2.7V ~ 5.5V
Number of Outputs
3
Base Product Number
LM3686
Frequency - Switching
3MHz
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
12-DSBGA
Voltage/Current - Output 1
1.2V, 600mA
Voltage/Current - Output 2
1.8V, 350mA
Voltage/Current - Output 3
2.8V, 300mA
| Attribute | Value |
|---|---|
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (2) |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| w/Sequencer | No |
| Manufacturer | Texas Instruments |
| w/LED Driver | No |
| w/Supervisor | No |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA, DSBGA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Number of Outputs | 3 |
| Base Product Number | LM3686 |
| Frequency - Switching | 3MHz |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 12-DSBGA |
| Voltage/Current - Output 1 | 1.2V, 600mA |
| Voltage/Current - Output 2 | 1.8V, 350mA |
| Voltage/Current - Output 3 | 2.8V, 300mA |
