Step1: Product
Texas Instruments DAC70501MDQFR

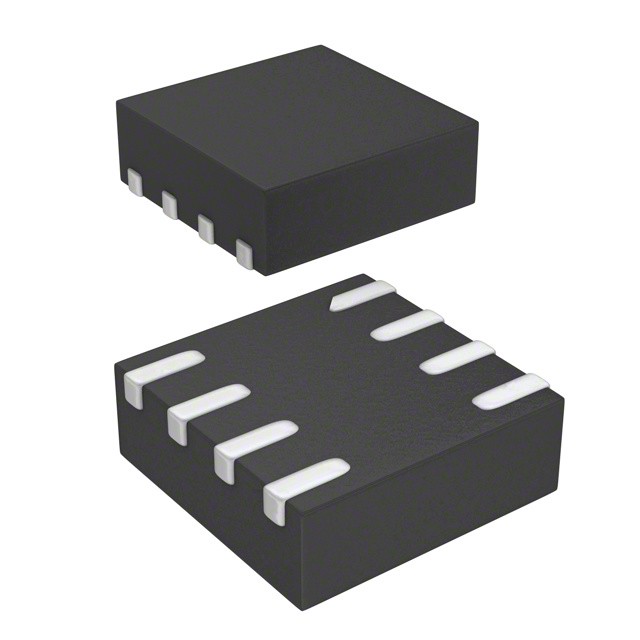

Image shown is a representation only
Manufacturer
Manufacturer No
DAC70501MDQFR
Quantity
10
Availability
In Stock
Package
8-WFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC DAC 14BIT 8-WSON
Detailed Description
14 Bit Digital to Analog Converter 1 8-WSON (2x2)
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Output Type
Voltage - Buffered
Part Status
Active
Architecture
R-2R
Manufacturer
Texas Instruments
INL/DNL (LSB)
±1 (Max), ±1 (Max)
Mounting Type
Surface Mount
Settling Time
5µs (Typ)
Data Interface
I2C, SPI
Number of Bits
14
Package / Case
8-WFDFN
Reference Type
External, Internal
Base Product Number
DAC70501
Differential Output
No
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
8-WSON (2x2)
Number of D/A Converters
1
Voltage - Supply, Analog
2.7V ~ 5.5V
Voltage - Supply, Digital
2.7V ~ 5.5V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Output Type | Voltage - Buffered |
| Part Status | Active |
| Architecture | R-2R |
| Manufacturer | Texas Instruments |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Mounting Type | Surface Mount |
| Settling Time | 5µs (Typ) |
| Data Interface | I2C, SPI |
| Number of Bits | 14 |
| Package / Case | 8-WFDFN |
| Reference Type | External, Internal |
| Base Product Number | DAC70501 |
| Differential Output | No |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 8-WSON (2x2) |
| Number of D/A Converters | 1 |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
