Step1: Product
Texas Instruments DAC161S055CISQ/NOPB

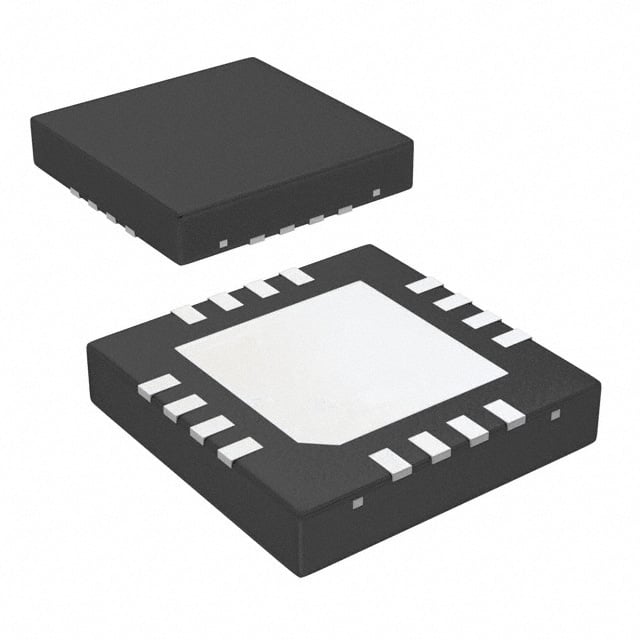

Image shown is a representation only
Manufacturer
Manufacturer No
DAC161S055CISQ/NOPB
Package
16-WFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC DAC 16BIT 16-WQFN
Detailed Description
16 Bit Digital to Analog Converter 1 16-WQFN (4x4)
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Output Type
Voltage - Buffered
Architecture
R-2R
Manufacturer
Texas Instruments
INL/DNL (LSB)
±1, +1.1 (Max)
Mounting Type
Surface Mount
Settling Time
5µs (Typ)
Data Interface
SPI
Number of Bits
16
Package / Case
16-WFQFN Exposed Pad
Reference Type
External
Base Product Number
DAC161S055
Differential Output
No
Operating Temperature
-40°C ~ 105°C
Supplier Device Package
16-WQFN (4x4)
Number of D/A Converters
1
Voltage - Supply, Analog
2.7V ~ 5.25V
Voltage - Supply, Digital
1.7V ~ 5.25V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Output Type | Voltage - Buffered |
| Architecture | R-2R |
| Manufacturer | Texas Instruments |
| INL/DNL (LSB) | ±1, +1.1 (Max) |
| Mounting Type | Surface Mount |
| Settling Time | 5µs (Typ) |
| Data Interface | SPI |
| Number of Bits | 16 |
| Package / Case | 16-WFQFN Exposed Pad |
| Reference Type | External |
| Base Product Number | DAC161S055 |
| Differential Output | No |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 16-WQFN (4x4) |
| Number of D/A Converters | 1 |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.7V ~ 5.25V |
