Step1: Product
Texas Instruments CC2340R52E0WRHBRQ1

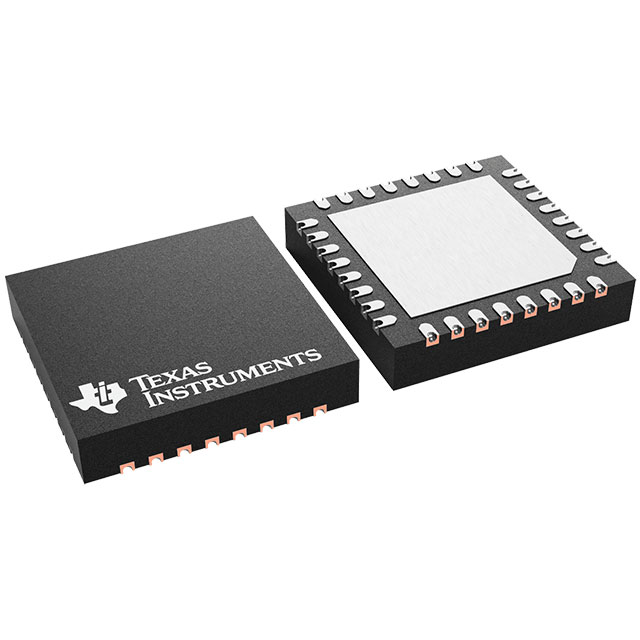

Image shown is a representation only
Manufacturer
Manufacturer No
CC2340R52E0WRHBRQ1
Quantity
40
Availability
In Stock
Package
32-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC RF TXRX+MCU BLE 32VQFN
Detailed Description
IC RF TxRx + MCU Bluetooth Bluetooth v5.3, Zigbee® 2.36GHz ~ 2.5GHz 32-VFQFN Exposed Pad
Datasheet
Mfr
Texas Instruments
GPIO
19
Type
TxRx + MCU
Grade
Automotive
Protocol
Bluetooth v5.3, Zigbee®
Frequency
2.36GHz ~ 2.5GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Modulation
GFSK
Memory Size
512kB Flash, 12kB ROM, 36kB SRAM
Sensitivity
-102dBm
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q100
Package / Case
32-VFQFN Exposed Pad
Power - Output
8dBm
Data Rate (Max)
2Mbps
Voltage - Supply
1.71V ~ 3.8V
Serial Interfaces
ADC, GPIO, I2C, JTAG, PWM, SPI, UART
RF Family/Standard
Bluetooth
Current - Receiving
5.3mA ~ 9mA
Operating Temperature
-40°C ~ 125°C (TA)
Current - Transmitting
4.5mA ~ 19mA
Supplier Device Package
32-VQFN (5x5)
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| GPIO | 19 |
| Type | TxRx + MCU |
| Grade | Automotive |
| Protocol | Bluetooth v5.3, Zigbee® |
| Frequency | 2.36GHz ~ 2.5GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Modulation | GFSK |
| Memory Size | 512kB Flash, 12kB ROM, 36kB SRAM |
| Sensitivity | -102dBm |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q100 |
| Package / Case | 32-VFQFN Exposed Pad |
| Power - Output | 8dBm |
| Data Rate (Max) | 2Mbps |
| Voltage - Supply | 1.71V ~ 3.8V |
| Serial Interfaces | ADC, GPIO, I2C, JTAG, PWM, SPI, UART |
| RF Family/Standard | Bluetooth |
| Current - Receiving | 5.3mA ~ 9mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Transmitting | 4.5mA ~ 19mA |
| Supplier Device Package | 32-VQFN (5x5) |
