Step1: Product
Telegartner Inc 100007550

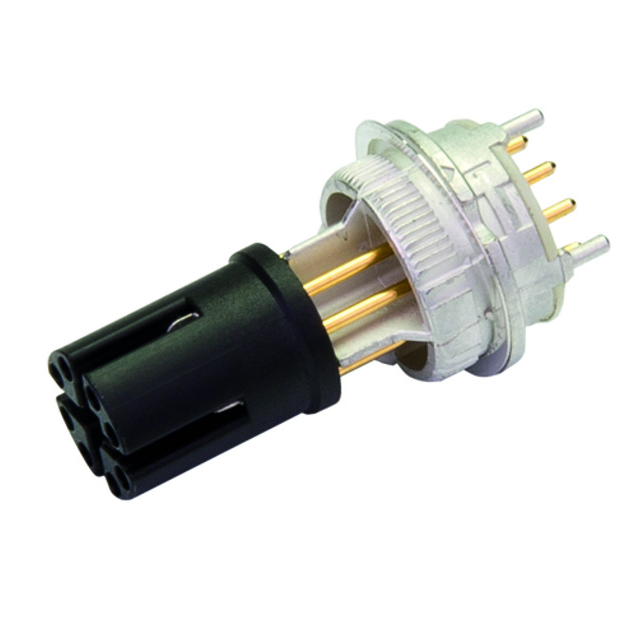

Image shown is a representation only
Manufacturer
Manufacturer No
100007550
Packaging
Bag
Description
CU-CN M12X-BS C6A THR w/o hous
Detailed Description
8 (Data) Position Circular Connector Insert, Female Sockets Solder
DataSheet
Mfr
Telegartner Inc
Color
Black
Features
Board Guide, Insert Only, Requires Shell
Packaging
Bag
Shielding
Unshielded
Orientation
X
Part Status
Active
Termination
Solder
Applications
Industrial
Mounting Type
Through Hole
Connector Type
Insert, Female Sockets
Voltage Rating
50VAC, 60VDC
Insert Material
Polyamide (PA), Nylon
Contact Material
Bronze
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
J80020
Number of Positions
8 (Data)
Shell Size - Insert
M12-8
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Telegartner Inc |
| Color | Black |
| Features | Board Guide, Insert Only, Requires Shell |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | X |
| Part Status | Active |
| Termination | Solder |
| Applications | Industrial |
| Mounting Type | Through Hole |
| Connector Type | Insert, Female Sockets |
| Voltage Rating | 50VAC, 60VDC |
| Insert Material | Polyamide (PA), Nylon |
| Contact Material | Bronze |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | J80020 |
| Number of Positions | 8 (Data) |
| Shell Size - Insert | M12-8 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
