Step1: Product

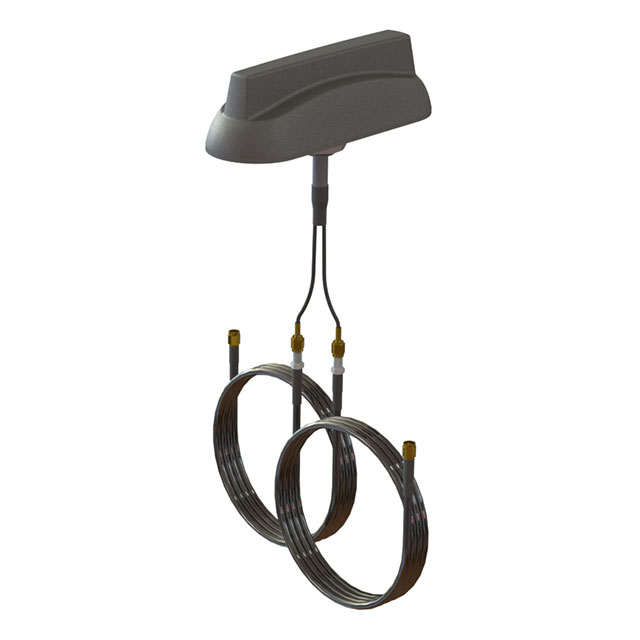

TE Connectivity VFD69383B2NNN-518R
Image shown is a representation only
Manufacturer
Manufacturer No
VFD69383B2NNN-518R
Packaging
Bulk
Description
ANT LOW PROFILE 2-PORT SHARKFIN
Detailed Description
RF ANTENNA 3G, 4G, 5G, ISM, LTE Dome SMA Male Panel Mount
DataSheet
Gain
0.2dBi, 1dBi, 1.5dBi, 3.6dBi, 3.5dBi, 2.9dBi, 3.2dBi, 4dBi, 5.1dBi
VSWR
2
Features
Cable - 5.18m
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Termination
SMA Male
Antenna Type
Dome
Applications
3G, 4G, 5G, ISM, LTE
Height (Max)
1.890" (48.00mm)
Manufacturer
TE Connectivity
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz
Number of Bands
9
Ingress Protection
IP67
RF Family/Standard
Cellular, General ISM
Base Product Number
VFD69383
Frequency (Center/Band)
752MHz, 859MHz, 920MHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz
| Attribute | Value |
|---|---|
| Gain | 0.2dBi, 1dBi, 1.5dBi, 3.6dBi, 3.5dBi, 2.9dBi, 3.2dBi, 4dBi, 5.1dBi |
| VSWR | 2 |
| Features | Cable - 5.18m |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Termination | SMA Male |
| Antenna Type | Dome |
| Applications | 3G, 4G, 5G, ISM, LTE |
| Height (Max) | 1.890" (48.00mm) |
| Manufacturer | TE Connectivity |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz |
| Number of Bands | 9 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular, General ISM |
| Base Product Number | VFD69383 |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz |
