Step1: Product
TE Connectivity 8-1393239-5

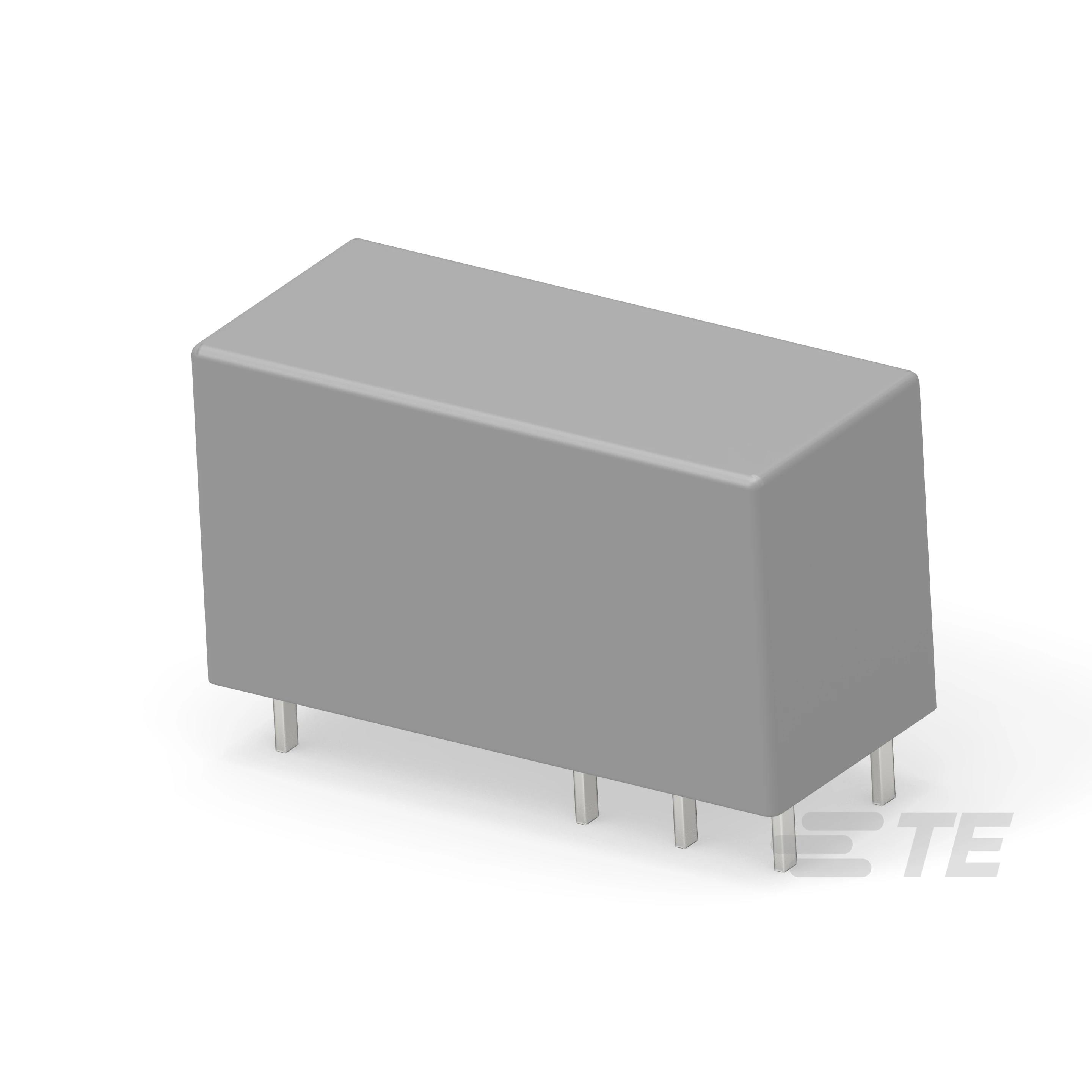

Image shown is a representation only
Manufacturer
Manufacturer No
8-1393239-5
Quantity
10
Availability
In Stock
Packaging
Tube
Description
Power/Signal Relay, 1 Form C, SP
Detailed Description
General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
DataSheet
Mfr
TE Connectivity
Series
RT1 Bistable, SCHRACK
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Flux Protection
Coil Current
119 mA
Coil Voltage
5VDC
Contact Form
SPDT (1 Form C)
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
cCSAus, CQC, cURus, VDE
Coil Insulation
Class F
Coil Resistance
42 Ohms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Load - Max Switching
4000VA
Must Operate Voltage
3.5 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity |
| Series | RT1 Bistable, SCHRACK |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 119 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | cCSAus, CQC, cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 42 Ohms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Load - Max Switching | 4000VA |
| Must Operate Voltage | 3.5 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 16 A |
