Step1: Product
TE Connectivity Schaffner RT8122-32-1M5

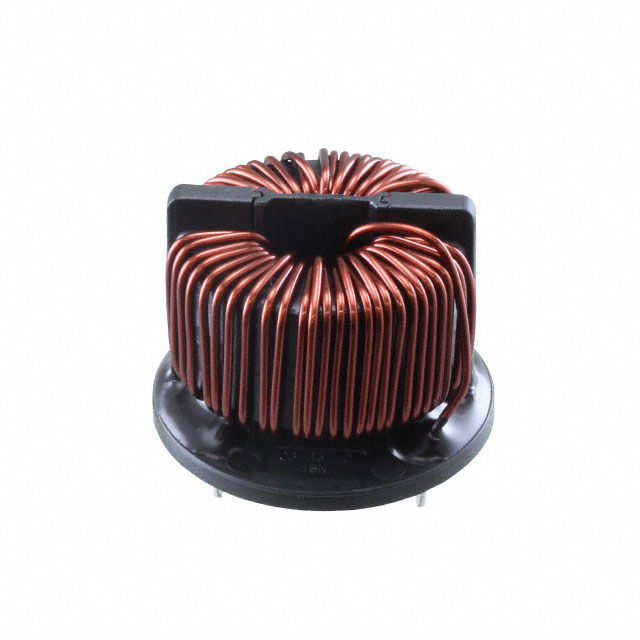

Image shown is a representation only
Manufacturer
Manufacturer No
RT8122-32-1M5
Package
Horizontal, 8 PC Pin
Packaging
Box
Description
HORIZONTAL 32 A PCB TWO LINE COM
Detailed Description
1.5 mH @ 100 kHz 2 Line Common Mode Choke Through Hole DCR 3.4mOhm
DataSheet
Series
RT
Packaging
Box
Filter Type
Power Line
Part Status
Active
Height (Max)
1.457" (37.00mm)
Manufacturer
TE Connectivity Schaffner
Mounting Type
Through Hole
Package / Case
Horizontal, 8 PC Pin
Approval Agency
UR
Number of Lines
2
Size / Dimension
2.441" Dia (62.00mm)
Voltage Rating - AC
300V
Voltage Rating - DC
425V
Operating Temperature
-40°C ~ 100°C
Inductance @ Frequency
1.5 mH @ 100 kHz
DC Resistance (DCR) (Max)
3.4mOhm
| Attribute | Value |
|---|---|
| Series | RT |
| Packaging | Box |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 1.457" (37.00mm) |
| Manufacturer | TE Connectivity Schaffner |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 8 PC Pin |
| Approval Agency | UR |
| Number of Lines | 2 |
| Size / Dimension | 2.441" Dia (62.00mm) |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 425V |
| Operating Temperature | -40°C ~ 100°C |
| Inductance @ Frequency | 1.5 mH @ 100 kHz |
| DC Resistance (DCR) (Max) | 3.4mOhm |
