Step1: Product

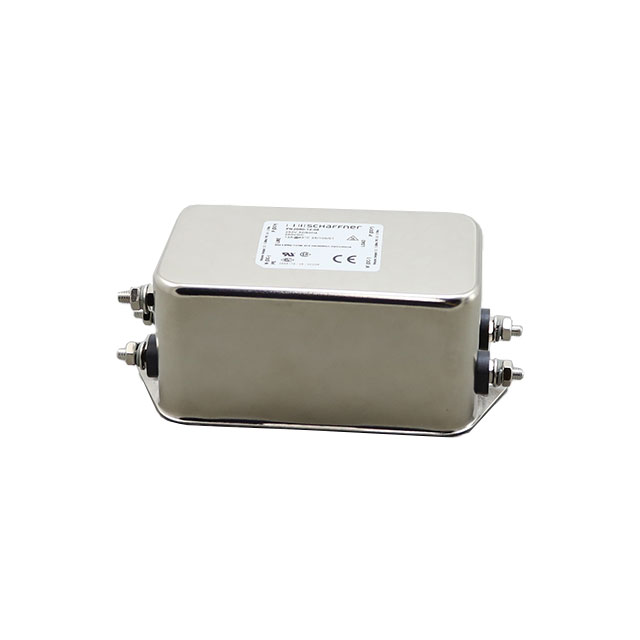

TE Connectivity Schaffner FN2090-12-08
Image shown is a representation only
Manufacturer
Manufacturer No
FN2090-12-08
Packaging
Bulk
Description
LINE FILTER 250VAC/VDC 12A CHASS
Detailed Description
Single Phase EMC/EMI Line Filter 12 A 250V 250V DC ~ 400Hz Two Stage Threaded Post (M4)
DataSheet
Series
FN 2090
Current
12 A
Packaging
Bulk
Inductance
4mH
Filter Type
Single Phase
Part Status
Active
Applications
General Purpose
Manufacturer
TE Connectivity Schaffner
Configuration
Two Stage
Mounting Type
Chassis Mount
Approval Agency
CE, CSA, ENEC, UR
Termination Style
Threaded Post (M4)
Voltage - Rated AC
250V
Voltage - Rated DC
250V
Base Product Number
FN2090
Frequency - Operating
DC ~ 400Hz
Operating Temperature
-25°C ~ 100°C
| Attribute | Value |
|---|---|
| Series | FN 2090 |
| Current | 12 A |
| Packaging | Bulk |
| Inductance | 4mH |
| Filter Type | Single Phase |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | TE Connectivity Schaffner |
| Configuration | Two Stage |
| Mounting Type | Chassis Mount |
| Approval Agency | CE, CSA, ENEC, UR |
| Termination Style | Threaded Post (M4) |
| Voltage - Rated AC | 250V |
| Voltage - Rated DC | 250V |
| Base Product Number | FN2090 |
| Frequency - Operating | DC ~ 400Hz |
| Operating Temperature | -25°C ~ 100°C |
