Step1: Product
TE Connectivity Potter & Brumfield Relays TSC-105D3H,000

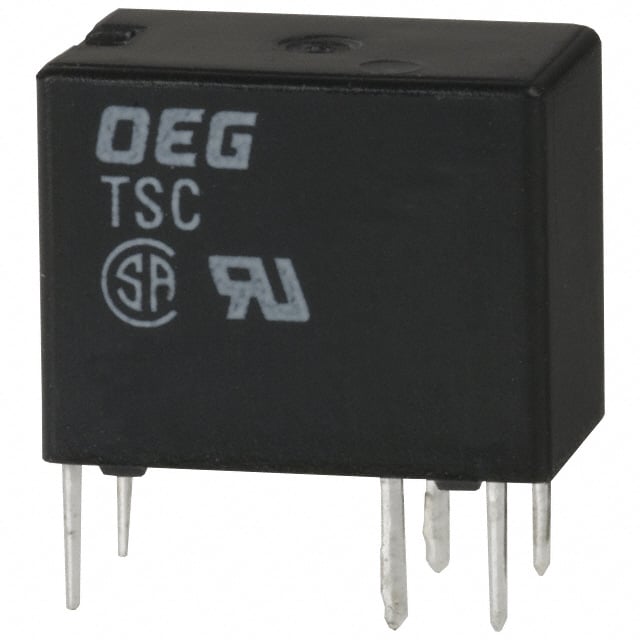

Image shown is a representation only
Manufacturer
Manufacturer No
TSC-105D3H,000
Packaging
Tube
Description
RELAY TELECOM SPDT 1A 5V
Detailed Description
Telecom Relay SPDT (1 Form C) Through Hole
Datasheet
Series
TSC, OEG
Coil Type
Non Latching
Packaging
Tube
Relay Type
Telecom
Seal Rating
Sealed - Fully
Coil Current
60 mA
Coil Voltage
5VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Operate Time
5 ms
Release Time
5 ms
Mounting Type
Through Hole
Approval Agency
CSA, UR
Coil Resistance
83 Ohms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
120VAC, 30VDC - Max
Termination Style
PC Pin
Base Product Number
TSC-105
Load - Max Switching
120VA, 30W
Must Operate Voltage
3.75 VDC
Must Release Voltage
0.25 VDC
Operating Temperature
-30°C ~ 80°C
Contact Rating (Current)
1 A
| Attribute | Value |
|---|---|
| Series | TSC, OEG |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | Telecom |
| Seal Rating | Sealed - Fully |
| Coil Current | 60 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Approval Agency | CSA, UR |
| Coil Resistance | 83 Ohms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 120VAC, 30VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | TSC-105 |
| Load - Max Switching | 120VA, 30W |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.25 VDC |
| Operating Temperature | -30°C ~ 80°C |
| Contact Rating (Current) | 1 A |
