Step1: Product

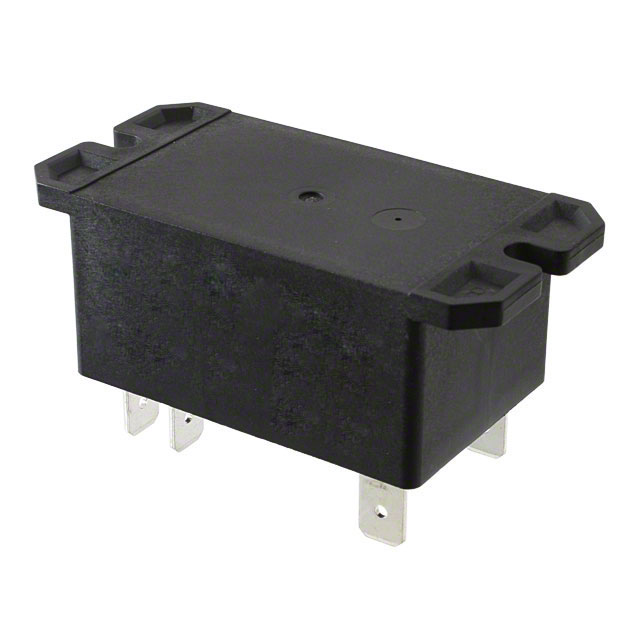

TE Connectivity Potter & Brumfield Relays T92S7D22-24
Image shown is a representation only
Manufacturer
Manufacturer No
T92S7D22-24
Quantity
200
Availability
In Stock
Packaging
Bulk
Description
RELAY GEN PURPOSE DPST 30A 24V
Detailed Description
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
T92
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Active
Coil Current
70.8 mA
Coil Voltage
24VDC
Contact Form
DPST-NO (2 Form A)
Operate Time
15 ms
Release Time
15 ms
Mounting Type
Chassis Mount
Approval Agency
CSA, TUV, UL, UR, VDE
Coil Insulation
Class F
Coil Resistance
350 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
600VAC - Max
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
T92S7
Load - Max Switching
18000VA
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-55°C ~ 85°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | T92 |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 70.8 mA |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Mounting Type | Chassis Mount |
| Approval Agency | CSA, TUV, UL, UR, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 350 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 600VAC - Max |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | T92S7 |
| Load - Max Switching | 18000VA |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -55°C ~ 85°C |
| Contact Rating (Current) | 30 A |
