Step1: Product

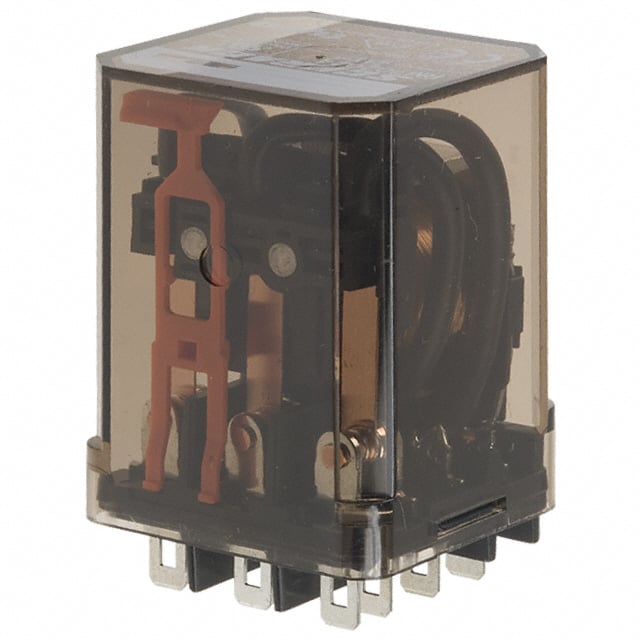

TE Connectivity Potter & Brumfield Relays RM232615

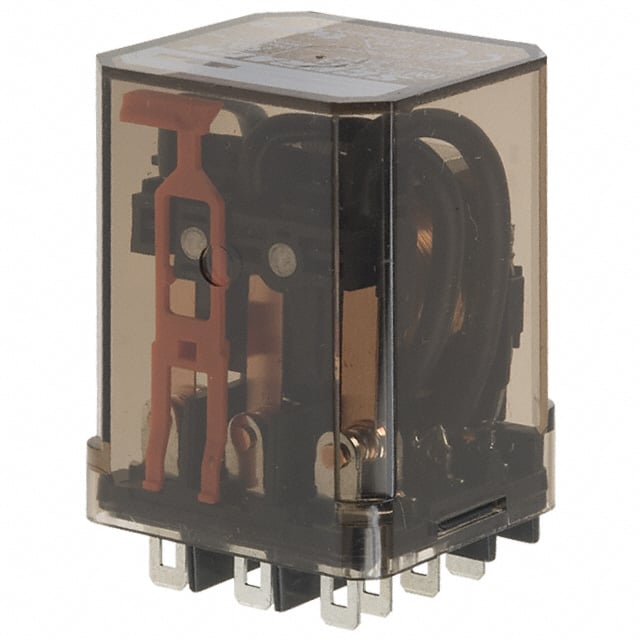

Image shown is a representation only
Manufacturer
Manufacturer No
RM232615
Packaging
Bulk
Description
RELAY GEN PURPOSE DPDT 16A 115V
Detailed Description
General Purpose Relay DPDT (2 Form C) 115VAC Coil Socketable
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
RM, SCHRACK
Features
Mechanical Indicator, Test Button
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Obsolete
Coil Current
57.5 mA
Coil Voltage
115VAC
Contact Form
DPDT (2 Form C)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Socketable
Approval Agency
cURus, VDE
Coil Resistance
2 kOhms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
440VAC - Max
Termination Style
Plug In, Quick Connect - 0.187" (4.7mm)
Base Product Number
RM2326
Load - Max Switching
7040VA
Must Operate Voltage
92 VAC
Must Release Voltage
34.5 VAC
Operating Temperature
-45°C ~ 60°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RM, SCHRACK |
| Features | Mechanical Indicator, Test Button |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Coil Current | 57.5 mA |
| Coil Voltage | 115VAC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Socketable |
| Approval Agency | cURus, VDE |
| Coil Resistance | 2 kOhms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 440VAC - Max |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Base Product Number | RM2326 |
| Load - Max Switching | 7040VA |
| Must Operate Voltage | 92 VAC |
| Must Release Voltage | 34.5 VAC |
| Operating Temperature | -45°C ~ 60°C |
| Contact Rating (Current) | 16 A |
