Step1: Product
TE Connectivity Potter & Brumfield Relays 7-1415541-0

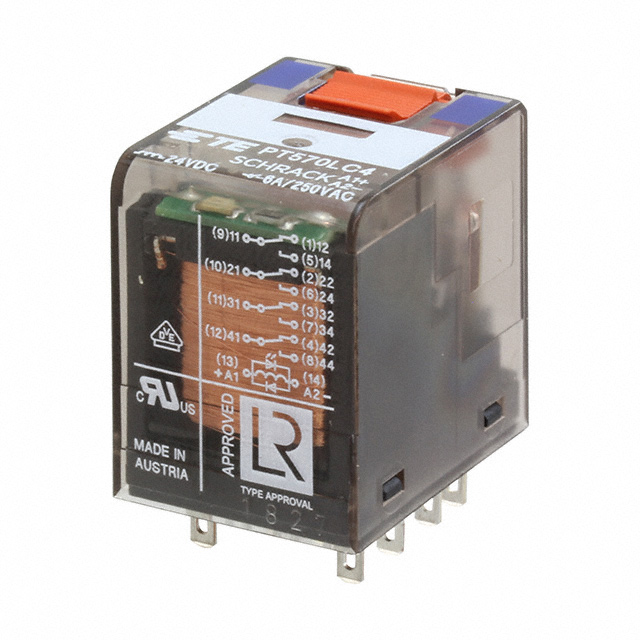

Image shown is a representation only
Manufacturer
Manufacturer No
7-1415541-0
Packaging
Tube
Description
RELAY GEN PURPOSE 4PDT 6A 24V
Detailed Description
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
PT, SCHRACK
Features
Diode, Lighted Indicator, Test Button
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Flux Protection
Coil Current
30.8 mA
Coil Voltage
24VDC
Contact Form
4PDT (4 Form C)
Operate Time
15 ms
Release Time
18 ms
Mounting Type
Socketable
Approval Agency
cURus, VDE
Coil Insulation
Class F
Coil Resistance
777 Ohms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
240VAC - Max
Termination Style
Plug In, Quick Connect - 0.110" (2.8mm)
Base Product Number
PT570
Load - Max Switching
1440VA
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
6 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | PT, SCHRACK |
| Features | Diode, Lighted Indicator, Test Button |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 30.8 mA |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Operate Time | 15 ms |
| Release Time | 18 ms |
| Mounting Type | Socketable |
| Approval Agency | cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 777 Ohms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 240VAC - Max |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Base Product Number | PT570 |
| Load - Max Switching | 1440VA |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 6 A |
