Step1: Product

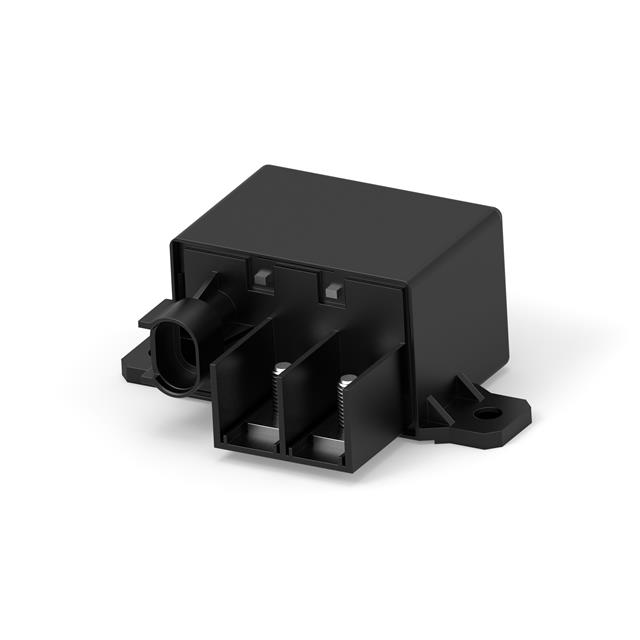

TE Connectivity Potter & Brumfield Relays 5-1414968-1
Image shown is a representation only
Manufacturer
Manufacturer No
5-1414968-1
Packaging
Bulk
Description
V23132B2002B200-EV-USBX
Detailed Description
General Purpose Relay SPST-NO (DM) (1 Form X) 24VDC Coil Chassis Mount
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
V23132, AXICOM
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Active
Coil Current
170.2 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (DM) (1 Form X)
Operate Time
25 ms
Release Time
8 ms
Mounting Type
Chassis Mount
Coil Resistance
141 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
24VDC - Nom
Termination Style
Screw Terminal
Base Product Number
V23132
Must Operate Voltage
14.4 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
130 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | V23132, AXICOM |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 170.2 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Operate Time | 25 ms |
| Release Time | 8 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 141 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 24VDC - Nom |
| Termination Style | Screw Terminal |
| Base Product Number | V23132 |
| Must Operate Voltage | 14.4 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 130 A |
