Step1: Product

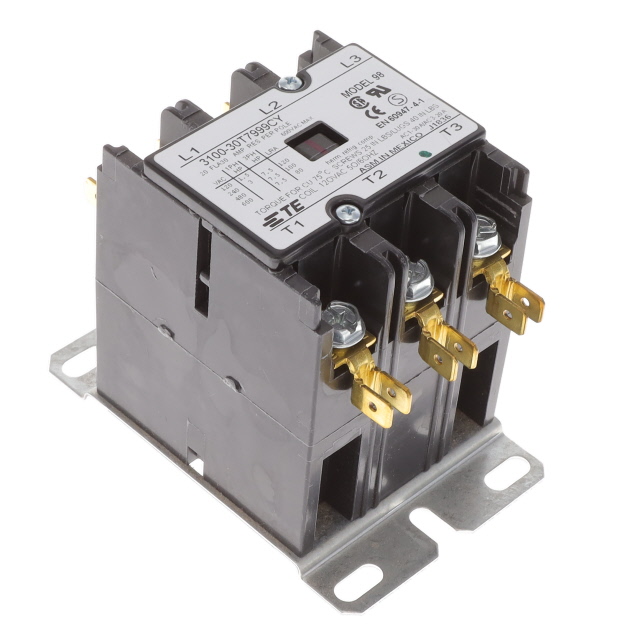

TE Connectivity Potter & Brumfield Relays 3100-30T7999CY
Image shown is a representation only
Manufacturer
Manufacturer No
3100-30T7999CY
Packaging
Bulk
Description
RELAY CONTACTOR 3PST 20A 120V
Detailed Description
Contactor 3PST-NO (DM) (3 Form X) 20 A 120VAC Coil Chassis Mount
DataSheet
Series
3100, Products Unlimited
Features
Insulation - Class B
Packaging
Bulk
Coil Power
5VA
Part Status
Obsolete
Coil Voltage
120VAC
Contact Form
3PST-NO (DM) (3 Form X)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Mounting Type
Chassis Mount
Coil Resistance
180Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
600VAC - Max
Termination Style
Screw Terminal, Quick Connect - 0.250" (6.3mm)
Base Product Number
3100-30
Must Operate Voltage
88 VAC
Must Release Voltage
20 VAC
Operating Temperature
-40°C ~ 65°C
Contact Rating (Current)
20 A
| Attribute | Value |
|---|---|
| Series | 3100, Products Unlimited |
| Features | Insulation - Class B |
| Packaging | Bulk |
| Coil Power | 5VA |
| Part Status | Obsolete |
| Coil Voltage | 120VAC |
| Contact Form | 3PST-NO (DM) (3 Form X) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Mounting Type | Chassis Mount |
| Coil Resistance | 180Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 600VAC - Max |
| Termination Style | Screw Terminal, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | 3100-30 |
| Must Operate Voltage | 88 VAC |
| Must Release Voltage | 20 VAC |
| Operating Temperature | -40°C ~ 65°C |
| Contact Rating (Current) | 20 A |
