TE Connectivity Potter & Brumfield Relays 3-2158100-5

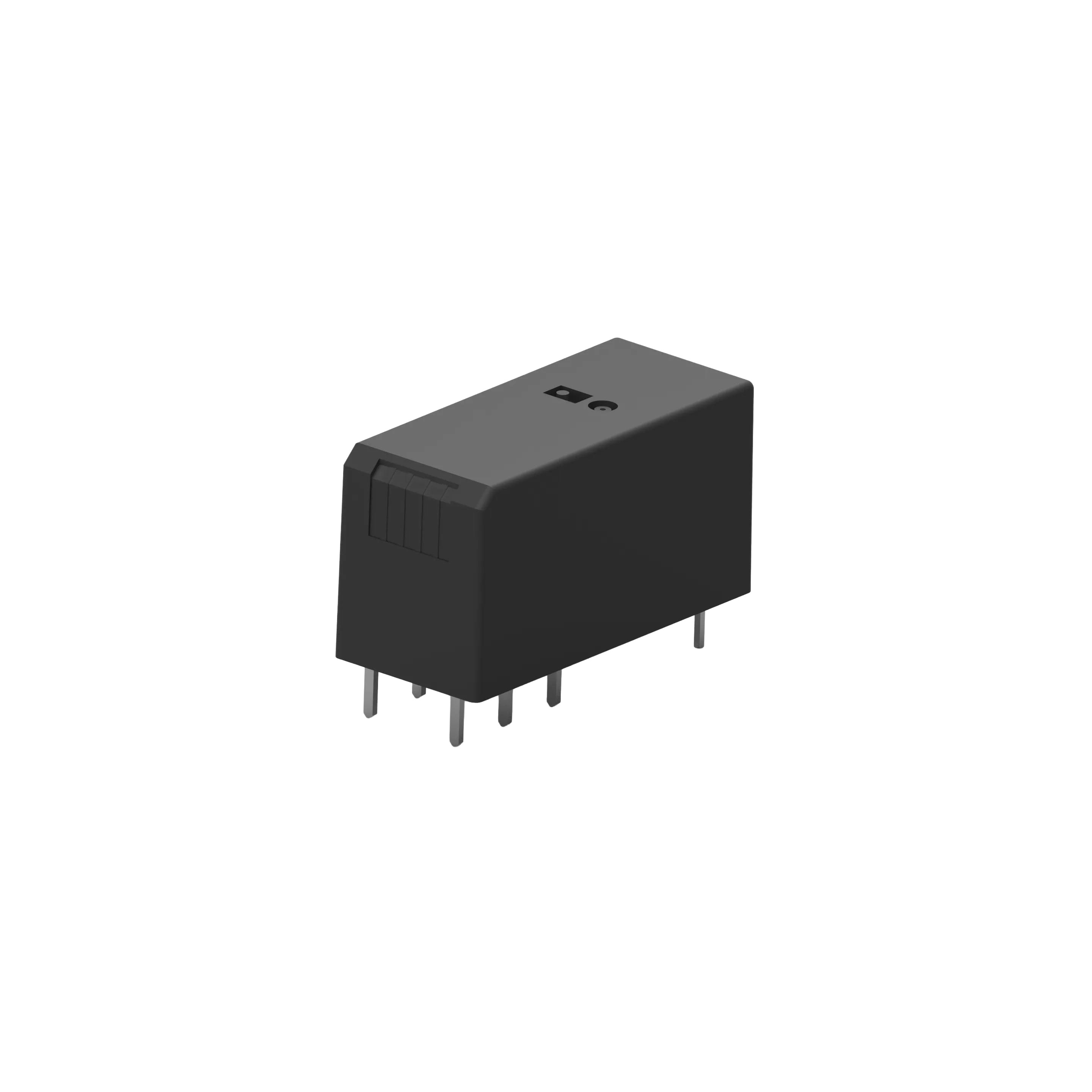

Image shown is a representation only
Manufacturer
Manufacturer No
3-2158100-5
Packaging
Bulk
Description
RELAY GEN PURPOSE SPDT 16A 24V
Detailed Description
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
RZL, SCHRACK
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Obsolete
Seal Rating
Sealed - Fully
Coil Current
22.1 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Operate Time
8 ms
Release Time
6 ms
Mounting Type
Through Hole
Approval Agency
CQC, cURus, VDE
Coil Insulation
Class F
Coil Resistance
1.086 kOhms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
2158100
Load - Max Switching
6400VA
Must Operate Voltage
16.8 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RZL, SCHRACK |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Seal Rating | Sealed - Fully |
| Coil Current | 22.1 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Mounting Type | Through Hole |
| Approval Agency | CQC, cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 1.086 kOhms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | 2158100 |
| Load - Max Switching | 6400VA |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 16 A |
