Step1: Product

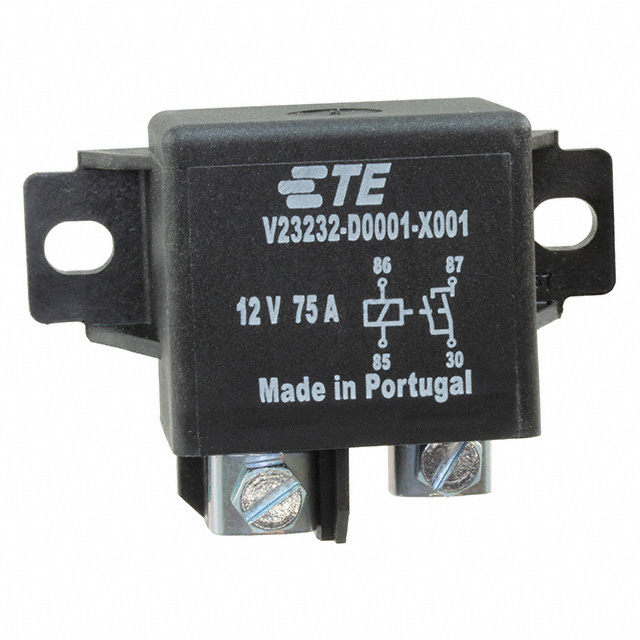

TE Connectivity Potter & Brumfield Relays 1904000-1
Image shown is a representation only
Manufacturer
Manufacturer No
1904000-1
Packaging
Box
Description
V23232D0001X001-EV-260
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
V23232, AXICOM
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Part Status
Obsolete
Seal Rating
Sealed - Fully
Coil Current
16.7 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
7 ms
Release Time
2 ms
Mounting Type
Chassis Mount
Coil Resistance
46 Ohms
Contact Material
Silver (Ag)
Switching Voltage
12VDC - Nom
Termination Style
Screw Terminal
Base Product Number
V23232
Must Operate Voltage
8.8 VDC
Must Release Voltage
1.5 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
50 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | V23232, AXICOM |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Seal Rating | Sealed - Fully |
| Coil Current | 16.7 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 46 Ohms |
| Contact Material | Silver (Ag) |
| Switching Voltage | 12VDC - Nom |
| Termination Style | Screw Terminal |
| Base Product Number | V23232 |
| Must Operate Voltage | 8.8 VDC |
| Must Release Voltage | 1.5 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 50 A |
