Step1: Product
TE Connectivity Potter & Brumfield Relays 1393845-9

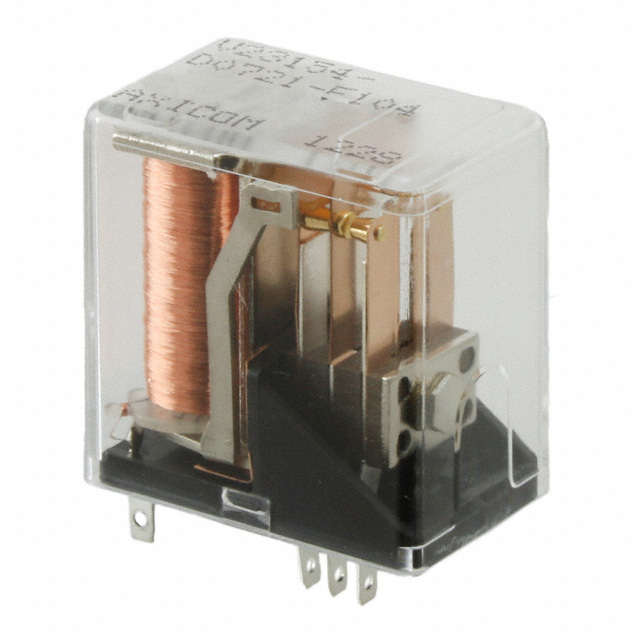

Image shown is a representation only
Manufacturer
Manufacturer No
1393845-9
Packaging
Bulk
Description
RELAY GEN PURPOSE DPDT 8A 115V
Detailed Description
General Purpose Relay DPDT (2 Form C) 115VAC Coil Through Hole
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
RP II/2, SCHRACK
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Obsolete
Seal Rating
Sealed - Fully
Coil Voltage
115VAC
Contact Form
DPDT (2 Form C)
Operate Time
9 ms
Release Time
3 ms
Mounting Type
Through Hole
Approval Agency
cURus, VDE
Contact Material
Silver Nickel (AgNi)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
RP8216
Load - Max Switching
3200VA
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
8 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RP II/2, SCHRACK |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Seal Rating | Sealed - Fully |
| Coil Voltage | 115VAC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 9 ms |
| Release Time | 3 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus, VDE |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | RP8216 |
| Load - Max Switching | 3200VA |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 8 A |
