Step1: Product

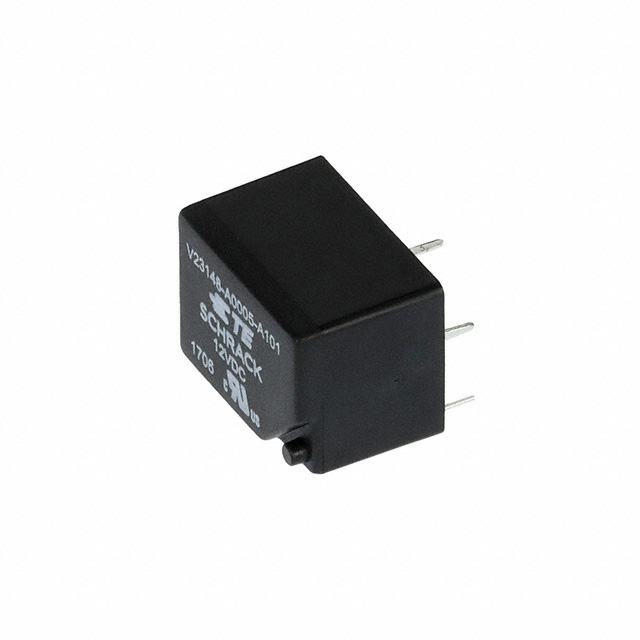

TE Connectivity Potter & Brumfield Relays 1393203-8
Image shown is a representation only
Manufacturer
Manufacturer No
1393203-8
Packaging
Tube
Description
RELAY GEN PURPOSE SPDT 7A 12V
Detailed Description
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
V23148, SCHRACK
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Discontinued at DigiKey
Coil Current
37.5 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Operate Time
5 ms
Release Time
3 ms
Mounting Type
Through Hole
Approval Agency
cURus
Coil Resistance
320 Ohms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
V23148
Load - Max Switching
2800VA
Must Operate Voltage
8.4 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-25°C ~ 70°C
Contact Rating (Current)
7 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | V23148, SCHRACK |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Discontinued at DigiKey |
| Coil Current | 37.5 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 5 ms |
| Release Time | 3 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus |
| Coil Resistance | 320 Ohms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | V23148 |
| Load - Max Switching | 2800VA |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -25°C ~ 70°C |
| Contact Rating (Current) | 7 A |
