Step1: Product

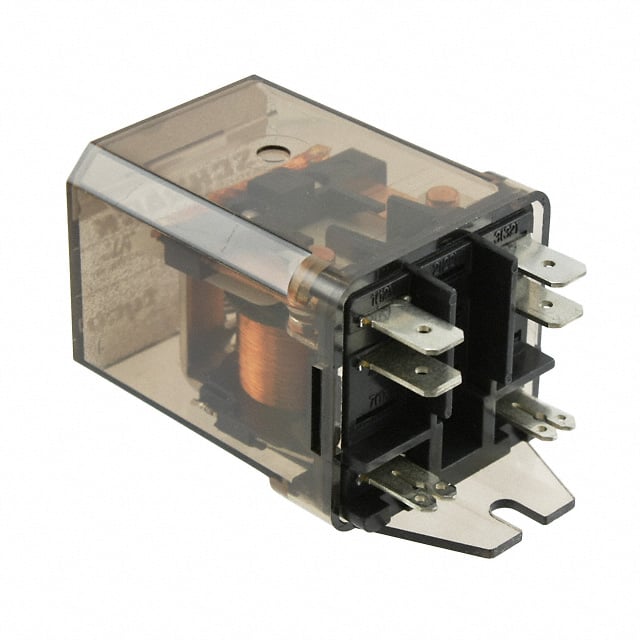

TE Connectivity Potter & Brumfield Relays 1393146-7
Image shown is a representation only
Manufacturer
Manufacturer No
1393146-7
Packaging
Tray
Description
RELAY GEN PURPOSE SPDT 30A 24V
Detailed Description
General Purpose Relay SPDT (DB/DM) (1 Form Z) 24VDC Coil Chassis Mount
Datasheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
RMC/D, SCHRACK
Features
Test Button
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Coil Current
50 mA
Coil Voltage
24VDC
Contact Form
SPDT (DB/DM) (1 Form Z)
Operate Time
20 ms
Release Time
20 ms
Mounting Type
Chassis Mount
Approval Agency
cURus, VDE
Coil Insulation
Class B
Coil Resistance
475 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
440VAC - Max
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
RMC350
Load - Max Switching
13200VA
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-45°C ~ 60°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RMC/D, SCHRACK |
| Features | Test Button |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Coil Current | 50 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (DB/DM) (1 Form Z) |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Mounting Type | Chassis Mount |
| Approval Agency | cURus, VDE |
| Coil Insulation | Class B |
| Coil Resistance | 475 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 440VAC - Max |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | RMC350 |
| Load - Max Switching | 13200VA |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -45°C ~ 60°C |
| Contact Rating (Current) | 30 A |
