TE Connectivity Passive Product 4900-8024RD63

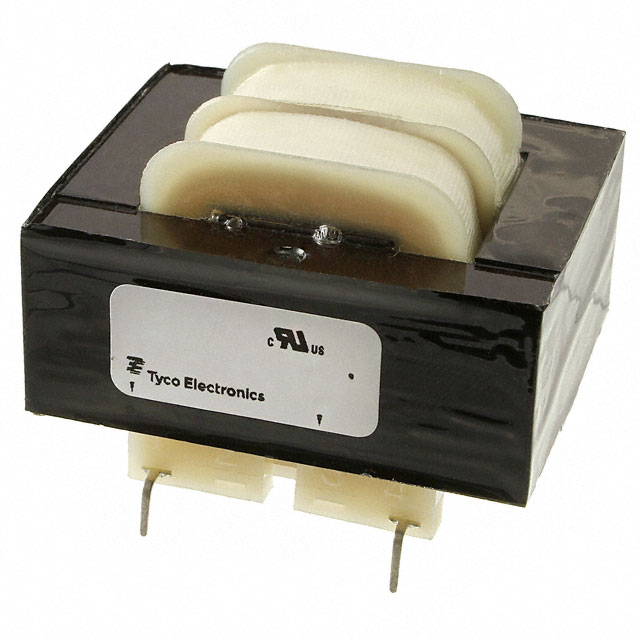

Image shown is a representation only
Manufacturer
Manufacturer No
4900-8024RD63
Packaging
Bulk
Description
PWR XFMR LAMINATED 12VA TH
Detailed Description
Laminated Core 12VA Power Transformer 115V Primary Parallel 12V, Series 24V Secondary Parallel 1A, Series 500mA Through Hole
DataSheet
Type
Laminated Core
Series
4900
Packaging
Bulk
Center Tap
No
Part Status
Obsolete
Power - Max
12VA
Manufacturer
TE Connectivity Passive Product
Mounting Type
Through Hole
Size / Dimension
48.00mm L x 40.00mm W
Termination Style
PC Pin
Voltage - Primary
115V
Primary Winding(s)
Single
Base Product Number
4900
Secondary Winding(s)
Dual
Height - Seated (Max)
35.80mm
Current - Output (Max)
Parallel 1A, Series 500mA
Voltage - Secondary (Full Load)
Parallel 12V, Series 24V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | 4900 |
| Packaging | Bulk |
| Center Tap | No |
| Part Status | Obsolete |
| Power - Max | 12VA |
| Manufacturer | TE Connectivity Passive Product |
| Mounting Type | Through Hole |
| Size / Dimension | 48.00mm L x 40.00mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Base Product Number | 4900 |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 35.80mm |
| Current - Output (Max) | Parallel 1A, Series 500mA |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
