Step1: Product

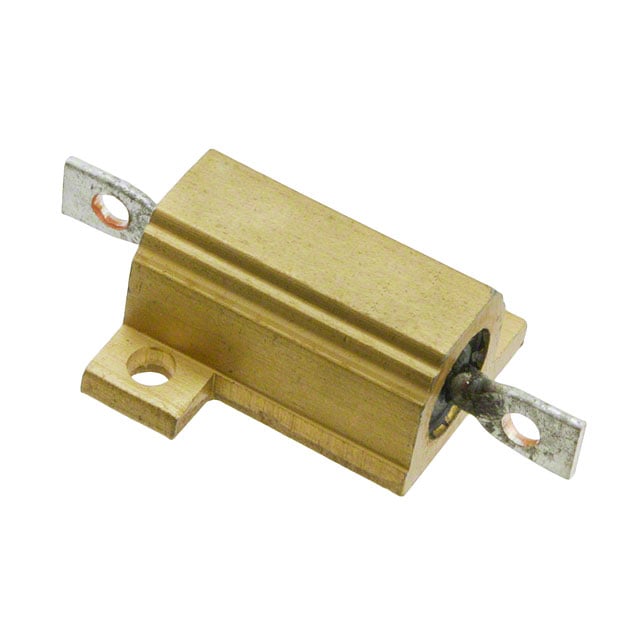

TE Connectivity Passive Product 1676814-4
Image shown is a representation only
Manufacturer
Manufacturer No
1676814-4
Package
Axial, Box
Packaging
Tray
Description
RES CHAS MNT 0.25 OHM 5% 10W
Detailed Description
250 mOhms ±5% 10W Wirewound Chassis Mount Resistor
DataSheet
Mfr
TE Connectivity Passive Product
Series
HS, CGS
Packaging
Tray
Tolerance
±5%
Lead Style
Solder Lugs
Resistance
250 mOhms
Composition
Wirewound
Part Status
Obsolete
Power (Watts)
10W
Package / Case
Axial, Box
Mounting Feature
Flanges
Size / Dimension
0.669" L x 0.669" W (17.00mm x 17.00mm)
Base Product Number
1676814
Coating, Housing Type
Aluminum
Height - Seated (Max)
0.354" (9.00mm)
Operating Temperature
-55°C ~ 200°C
Temperature Coefficient
±50ppm/°C
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Passive Product |
| Series | HS, CGS |
| Packaging | Tray |
| Tolerance | ±5% |
| Lead Style | Solder Lugs |
| Resistance | 250 mOhms |
| Composition | Wirewound |
| Part Status | Obsolete |
| Power (Watts) | 10W |
| Package / Case | Axial, Box |
| Mounting Feature | Flanges |
| Size / Dimension | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Base Product Number | 1676814 |
| Coating, Housing Type | Aluminum |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Operating Temperature | -55°C ~ 200°C |
| Temperature Coefficient | ±50ppm/°C |
