Step1: Product
TE Connectivity Measurement Specialties 6909-1003-030

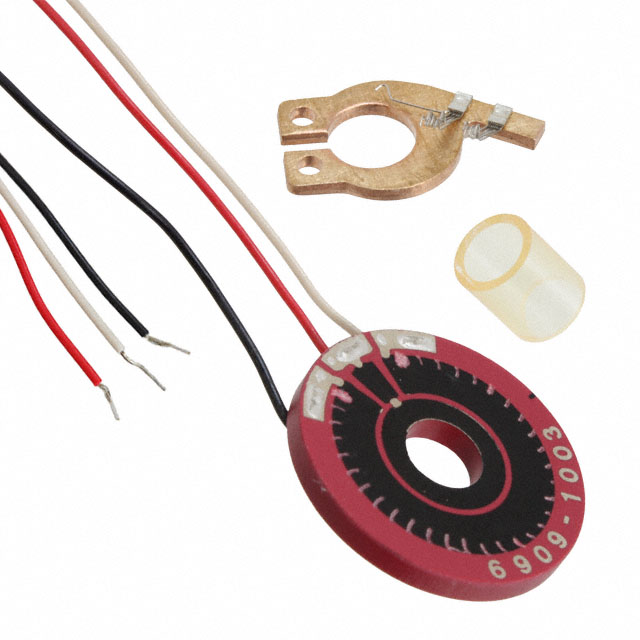

Image shown is a representation only
Manufacturer
Manufacturer No
6909-1003-030
Package
Ring, Wire Leads
Packaging
Bag
Description
SENSOR ROTARY 340DEG WIRE LEADS
Detailed Description
Resistive Sensor Rotary Position Exposed Element - Rotary Wire Leads
Datasheet
Output
Resistive
Series
6909
Linearity
±0.5%
Packaging
Bag
Resistance
10 kOhms
Technology
Resistive
Manufacturer
TE Connectivity Measurement Specialties
Actuator Type
Exposed Element - Rotary
For Measuring
Rotary Position
Mounting Type
Custom
Output Signal
Clockwise Increase
Package / Case
Ring, Wire Leads
Termination Style
Wire Leads
Resistance Tolerance
±10%
Operating Temperature
-65°C ~ 125°C
Rotation Angle - Electrical, Mechanical
0° ~ 340°, Continuous
| Attribute | Value |
|---|---|
| Output | Resistive |
| Series | 6909 |
| Linearity | ±0.5% |
| Packaging | Bag |
| Resistance | 10 kOhms |
| Technology | Resistive |
| Manufacturer | TE Connectivity Measurement Specialties |
| Actuator Type | Exposed Element - Rotary |
| For Measuring | Rotary Position |
| Mounting Type | Custom |
| Output Signal | Clockwise Increase |
| Package / Case | Ring, Wire Leads |
| Termination Style | Wire Leads |
| Resistance Tolerance | ±10% |
| Operating Temperature | -65°C ~ 125°C |
| Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous |
