Step1: Product
TE Connectivity Measurement Specialties 4525DO-SS3AS015AP

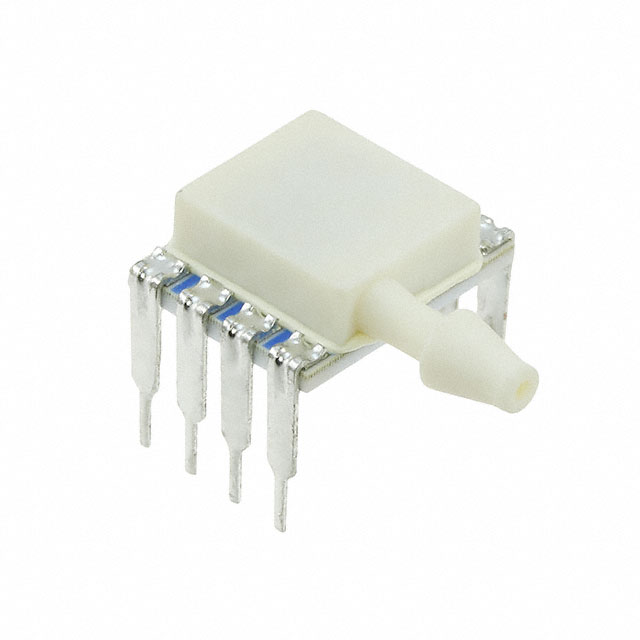

Image shown is a representation only
Manufacturer
Manufacturer No
4525DO-SS3AS015AP
Package
8-DIP Module
Packaging
Tray
Description
SENSOR 15PSIA 0.14" 14BIT
Detailed Description
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.14" (3.56mm) Tube 14 b 8-DIP Module
DataSheet
Output
14 b
Series
MS4525DO
Accuracy
±0.25%
Features
Temperature Compensated
Packaging
Tray
Port Size
Male - 0.14" (3.56mm) Tube
Port Style
Barbed
Output Type
SPI
Part Status
Active
Applications
Board Mount
Manufacturer
TE Connectivity Measurement Specialties
Mounting Type
Through Hole
Pressure Type
Absolute
Package / Case
8-DIP Module
Maximum Pressure
90PSI (620.53kPa)
Voltage - Supply
3.3V
Termination Style
PC Pin
Operating Pressure
15PSI (103.42kPa)
Base Product Number
4525
Operating Temperature
-25°C ~ 105°C
| Attribute | Value |
|---|---|
| Output | 14 b |
| Series | MS4525DO |
| Accuracy | ±0.25% |
| Features | Temperature Compensated |
| Packaging | Tray |
| Port Size | Male - 0.14" (3.56mm) Tube |
| Port Style | Barbed |
| Output Type | SPI |
| Part Status | Active |
| Applications | Board Mount |
| Manufacturer | TE Connectivity Measurement Specialties |
| Mounting Type | Through Hole |
| Pressure Type | Absolute |
| Package / Case | 8-DIP Module |
| Maximum Pressure | 90PSI (620.53kPa) |
| Voltage - Supply | 3.3V |
| Termination Style | PC Pin |
| Operating Pressure | 15PSI (103.42kPa) |
| Base Product Number | 4525 |
| Operating Temperature | -25°C ~ 105°C |
