Step1: Product
TE Connectivity Measurement Specialties 1230-015D-3L

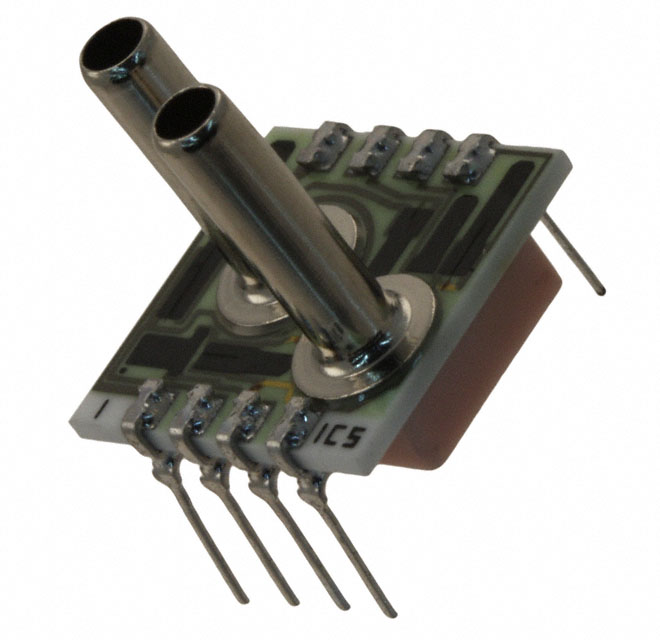

Image shown is a representation only
Manufacturer
Manufacturer No
1230-015D-3L
Package
8-DIP Module
Packaging
Bulk
Description
SENSOR 15PSID 0.13" 0.1V
Detailed Description
Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.13" (3.23mm) Tube, Dual 0 mV ~ 100 mV 8-DIP Module
DataSheet
Output
0 mV ~ 100 mV
Series
1230
Accuracy
±0.1%
Features
Temperature Compensated
Packaging
Bulk
Port Size
Male - 0.13" (3.23mm) Tube, Dual
Port Style
Barbless
Output Type
Wheatstone Bridge
Part Status
Obsolete
Applications
Board Mount
Manufacturer
TE Connectivity Measurement Specialties
Mounting Type
Through Hole
Pressure Type
Differential
Package / Case
8-DIP Module
Maximum Pressure
45PSI (310.26kPa)
Termination Style
PC Pin
Operating Pressure
15PSI (103.42kPa)
Operating Temperature
-40°C ~ 125°C
| Attribute | Value |
|---|---|
| Output | 0 mV ~ 100 mV |
| Series | 1230 |
| Accuracy | ±0.1% |
| Features | Temperature Compensated |
| Packaging | Bulk |
| Port Size | Male - 0.13" (3.23mm) Tube, Dual |
| Port Style | Barbless |
| Output Type | Wheatstone Bridge |
| Part Status | Obsolete |
| Applications | Board Mount |
| Manufacturer | TE Connectivity Measurement Specialties |
| Mounting Type | Through Hole |
| Pressure Type | Differential |
| Package / Case | 8-DIP Module |
| Maximum Pressure | 45PSI (310.26kPa) |
| Termination Style | PC Pin |
| Operating Pressure | 15PSI (103.42kPa) |
| Operating Temperature | -40°C ~ 125°C |
