Step1: Product

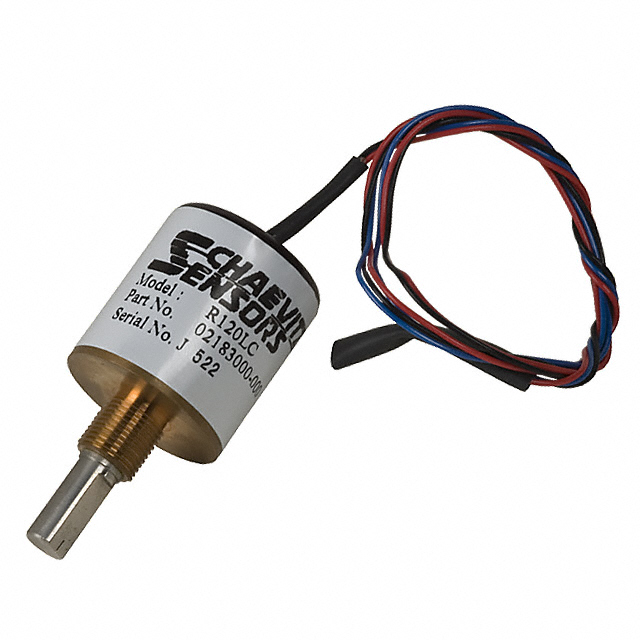

TE Connectivity Measurement Specialties 02183000-000
Image shown is a representation only
Manufacturer
Manufacturer No
02183000-000
Package
Cylinder
Packaging
Bulk
Description
SENSOR ROTARY 120DEG WIRE LEADS
Detailed Description
Inductive Sensor Rotary Position Round Shaft Wire Leads
DataSheet
Output
Analog Voltage
Series
R120LC
Linearity
±0.5%
Packaging
Bulk
Technology
Inductive
Part Status
Active
Manufacturer
TE Connectivity Measurement Specialties
Actuator Type
Round Shaft
For Measuring
Rotary Position
Mounting Type
Panel Mount
Output Signal
Clockwise Increase
Package / Case
Cylinder
Voltage - Supply
5V
Termination Style
Wire Leads
Base Product Number
0218
Operating Temperature
-40°C ~ 85°C
Rotation Angle - Electrical, Mechanical
0° ~ 120°, Continuous
| Attribute | Value |
|---|---|
| Output | Analog Voltage |
| Series | R120LC |
| Linearity | ±0.5% |
| Packaging | Bulk |
| Technology | Inductive |
| Part Status | Active |
| Manufacturer | TE Connectivity Measurement Specialties |
| Actuator Type | Round Shaft |
| For Measuring | Rotary Position |
| Mounting Type | Panel Mount |
| Output Signal | Clockwise Increase |
| Package / Case | Cylinder |
| Voltage - Supply | 5V |
| Termination Style | Wire Leads |
| Base Product Number | 0218 |
| Operating Temperature | -40°C ~ 85°C |
| Rotation Angle - Electrical, Mechanical | 0° ~ 120°, Continuous |
