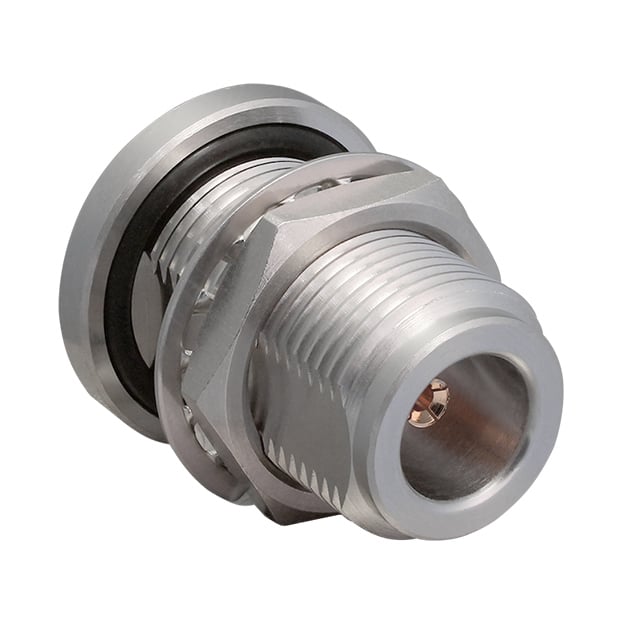

TE Connectivity Linx ADP-SMAF-NF-B-W
Image shown is a representation only
Manufacturer
Manufacturer No
ADP-SMAF-NF-B-W
Packaging
Bulk
Description
COAX ADAPT SMA TO N
Detailed Description
Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket 50 Ohms
DataSheet
Mfr
TE Connectivity Linx
Style
Straight
Features
Low PIM
Impedance
50 Ohms
Packaging
Bulk
Body Finish
White Bronze
Part Status
Active
Adapter Type
Jack to Jack
Body Material
Brass
Center Gender
Female to Female
Mating Cycles
500
Mounting Type
Panel Mount
Adapter Series
SMA to N
Fastening Type
Threaded, Threaded
Conversion Type
Between Series
Frequency - Max
11 GHz
Mounting Feature
Bulkhead
Base Product Number
ADP-SMAF
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
Convert To (Adapter End)
N Jack, Female Socket
Convert From (Adapter End)
SMA Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Style | Straight |
| Features | Low PIM |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | White Bronze |
| Part Status | Active |
| Adapter Type | Jack to Jack |
| Body Material | Brass |
| Center Gender | Female to Female |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Adapter Series | SMA to N |
| Fastening Type | Threaded, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 11 GHz |
| Mounting Feature | Bulkhead |
| Base Product Number | ADP-SMAF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
| Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | SMA Jack, Female Socket |
