Step1: Product

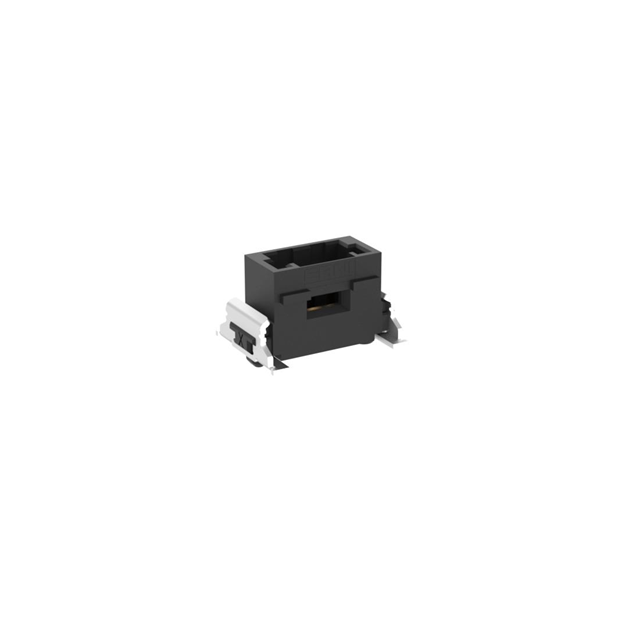

TE Connectivity Erni 474126-E
Image shown is a representation only
Manufacturer
Manufacturer No
474126-E
Quantity
20
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MIBR M 03POS VERT P SMT KS
Detailed Description
Connector Header Surface Mount 3 position 0.050" (1.27mm)
DataSheet
Mfr
TE Connectivity Erni
Style
Board to Cable/Wire
Series
MiniBridge
Features
Board Guide, Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.207" (5.25mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
3
Contact Finish - Post
Tin
Current Rating (Amps)
5.4A per Contact
Operating Temperature
-55°C ~ 150°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.087" (2.21mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Erni |
| Style | Board to Cable/Wire |
| Series | MiniBridge |
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.207" (5.25mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 5.4A per Contact |
| Operating Temperature | -55°C ~ 150°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.087" (2.21mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
