Step1: Product

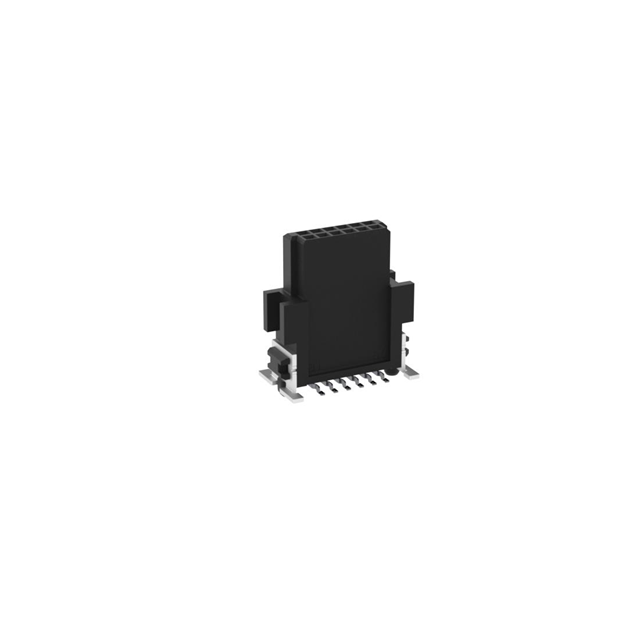

TE Connectivity Erni 234198-E
Image shown is a representation only
Manufacturer
Manufacturer No
234198-E
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SMC F VERT B 12POS SMT 13.7MM
Detailed Description
12 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet
Mfr
TE Connectivity Erni
Style
Board to Board
Series
SMC
Features
Board Guide, Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.537" (13.64mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
12
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Current Rating (Amps)
1.7A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Erni |
| Style | Board to Board |
| Series | SMC |
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.537" (13.64mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1.7A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
