TE Connectivity Erni 154767-E

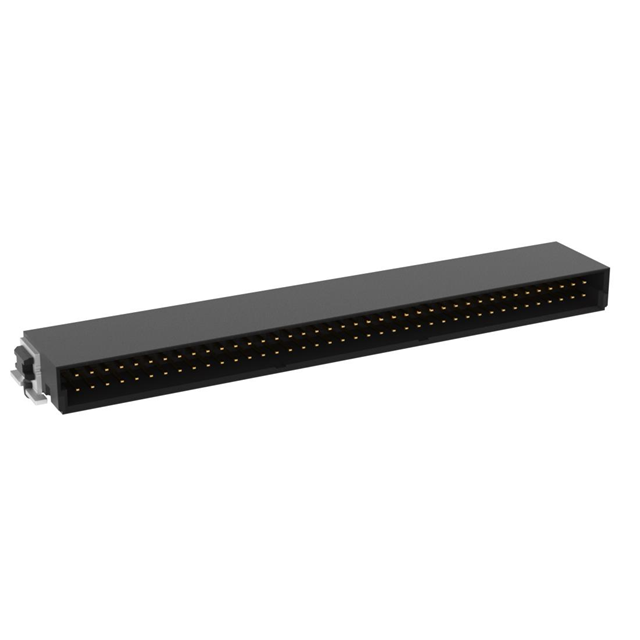

Image shown is a representation only
Manufacturer
Manufacturer No
154767-E
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SMC M RA B 80POS SMT
Detailed Description
Connector Header Surface Mount, Right Angle 80 position 0.050" (1.27mm)
DataSheet
Mfr
TE Connectivity Erni
Style
Board to Board or Cable
Series
SMC
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.167" (4.25mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
80
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Current Rating (Amps)
1.7A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Erni |
| Style | Board to Board or Cable |
| Series | SMC |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.167" (4.25mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 80 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1.7A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
