TE Connectivity Erni 109919-E

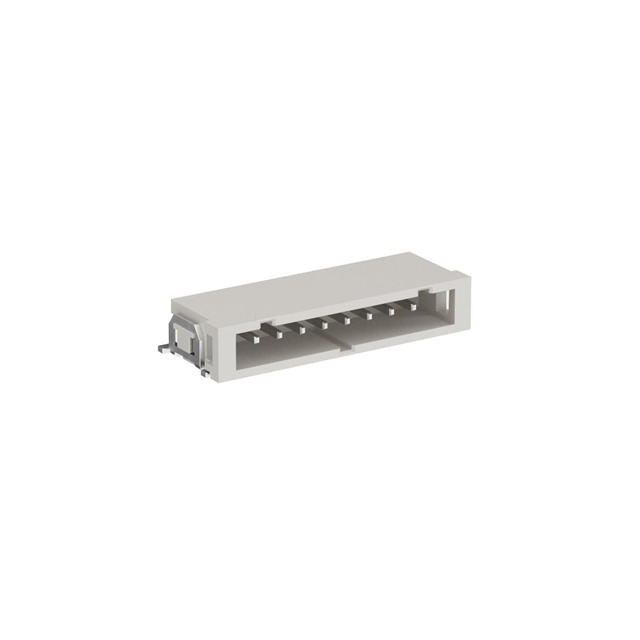

Image shown is a representation only
Manufacturer
Manufacturer No
109919-E
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IBRIDGE 2MM 08POS M RA SMT
Detailed Description
Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
DataSheet
Mfr
TE Connectivity Erni
Style
Board to Cable/Wire
Series
IBRIDGE ULTRA
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Not For New Designs
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
95V, 300V
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.169" (4.30mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
8
Contact Finish - Post
Tin
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 100°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
98.4µin (2.50µm)
Contact Finish Thickness - Mating
98.4µin (2.50µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Erni |
| Style | Board to Cable/Wire |
| Series | IBRIDGE ULTRA |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Not For New Designs |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 95V, 300V |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.169" (4.30mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 8 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 100°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 98.4µin (2.50µm) |
| Contact Finish Thickness - Mating | 98.4µin (2.50µm) |
