Step1: Product

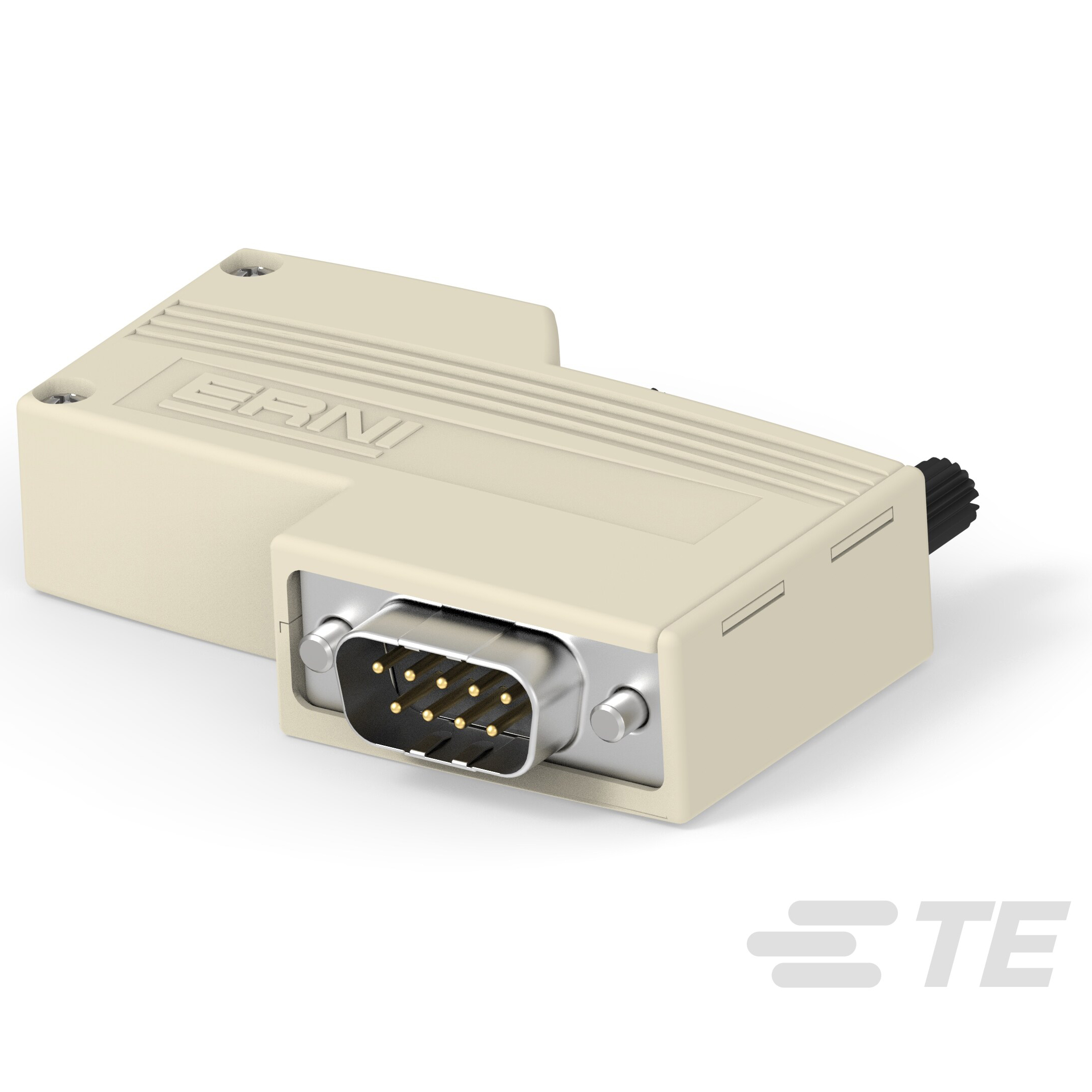

TE Connectivity Erni 103658-E
Image shown is a representation only
Manufacturer
Manufacturer No
103658-E
Packaging
Box
Description
CONN D-SUB PLUG 9POS SCREW
Detailed Description
9 Position D-Sub Plug, Male Pins Connector
DataSheet
Mfr
TE Connectivity Erni
Color
Gray
Features
Backshell
Packaging
Box
Part Status
Obsolete
Termination
Screw
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Flange Feature
Cable Side, Male Jackscrew (4-40)
Number of Rows
2
Connector Style
D-Sub
Ingress Protection
IP40
Dielectric Material
Plastic
Number of Positions
9
Operating Temperature
-20°C ~ 70°C
Material Flammability Rating
UL94 V-1
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Erni |
| Color | Gray |
| Features | Backshell |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | Screw |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Flange Feature | Cable Side, Male Jackscrew (4-40) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Ingress Protection | IP40 |
| Dielectric Material | Plastic |
| Number of Positions | 9 |
| Operating Temperature | -20°C ~ 70°C |
| Material Flammability Rating | UL94 V-1 |
| Shell Size, Connector Layout | 1 (DE, E) |
