Step1: Product

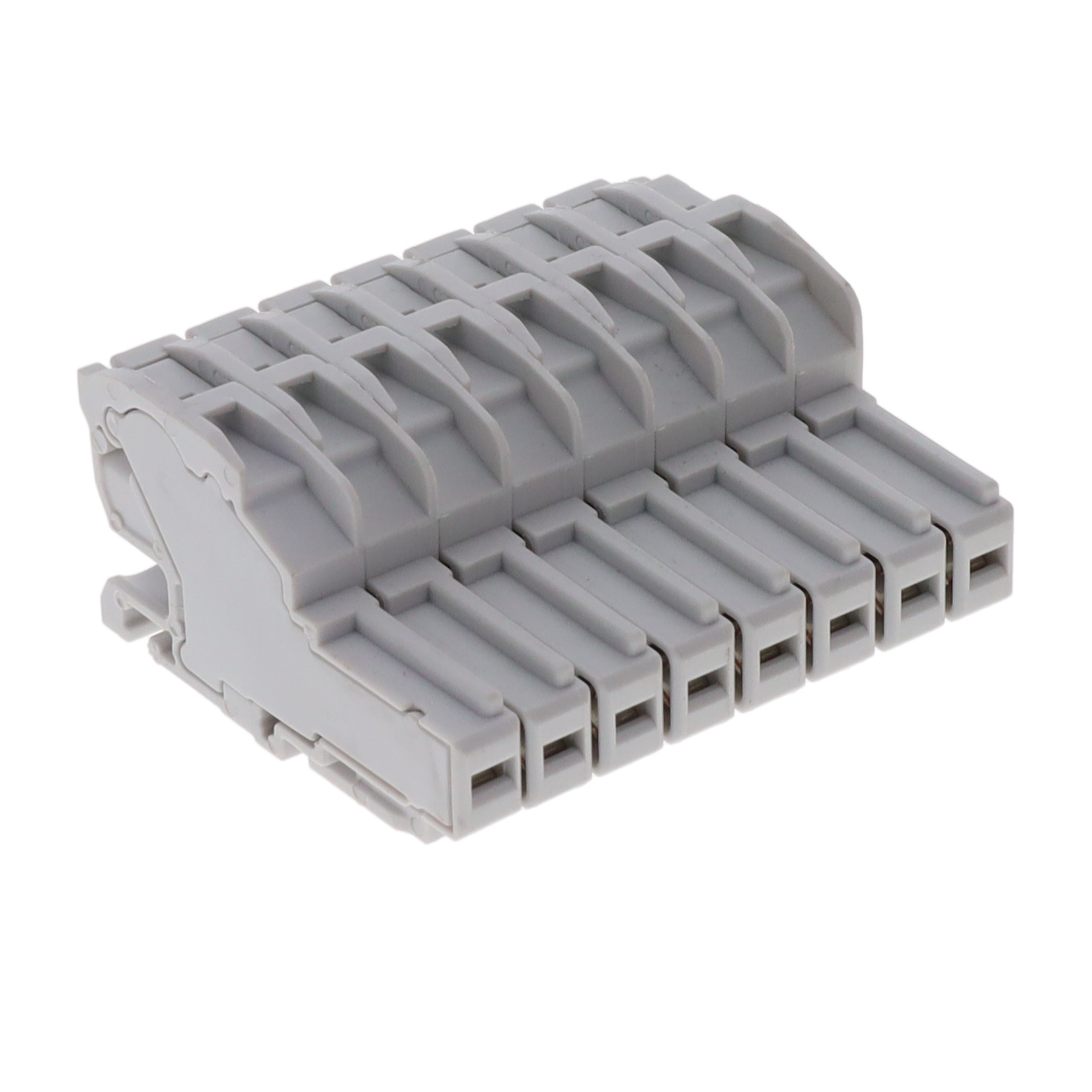

TE Connectivity ENTRELEC 1SNK805722R0000
Image shown is a representation only
Manufacturer
Manufacturer No
1SNK805722R0000
Packaging
Bulk
Description
TERM BLOCK PLUG 8POS
Detailed Description
8 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
DataSheet
Type
Plug, Female Sockets
Color
Gray
Series
SNK, CDK
Packaging
Bulk
Part Status
Active
Current - UL
22 A
Manufacturer
TE Connectivity ENTRELEC
Voltage - UL
600 V
Current - IEC
24A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
1 kV
Plug Wire Entry
180°
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
1.430" (36.32mm)
Termination Style
Screwless - Spring Cage, Tension Clamp
Wire Strip Length
11mm
Ingress Protection
IP20
Base Product Number
1SNK
Number of Positions
8
Positions Per Level
8
Operating Temperature
-55°C ~ 110°C
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm²
0.2-4mm²
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Gray |
| Series | SNK, CDK |
| Packaging | Bulk |
| Part Status | Active |
| Current - UL | 22 A |
| Manufacturer | TE Connectivity ENTRELEC |
| Voltage - UL | 600 V |
| Current - IEC | 24A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 1 kV |
| Plug Wire Entry | 180° |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 1.430" (36.32mm) |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Wire Strip Length | 11mm |
| Ingress Protection | IP20 |
| Base Product Number | 1SNK |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Operating Temperature | -55°C ~ 110°C |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
