Step1: Product

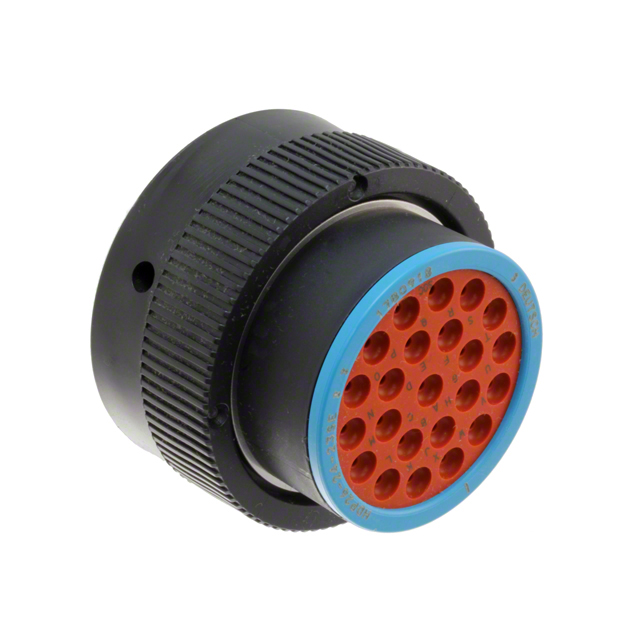

TE Connectivity Deutsch Connectors HDP26-24-23SE
Image shown is a representation only
Manufacturer
Manufacturer No
HDP26-24-23SE
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN PLG HSG FMALE 23POS INLINE
Detailed Description
23 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
DataSheet
Note
Contacts Sold Separately
Type
For Female Sockets
Series
HDP20
Features
Coupling Nut
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Contact Size
16
Contact Type
Crimp
Manufacturer
TE Connectivity Deutsch Connectors
Contact Shape
Circular
Housing Color
Black
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug Housing
Fastening Type
Bayonet Lock
Shell Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Insert Material
Polyetherimide (PEI)
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
HDP26
Number of Positions
23
Shell Size - Insert
24-23
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-1
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Female Sockets |
| Series | HDP20 |
| Features | Coupling Nut |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Contact Size | 16 |
| Contact Type | Crimp |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Contact Shape | Circular |
| Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug Housing |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insert Material | Polyetherimide (PEI) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | HDP26 |
| Number of Positions | 23 |
| Shell Size - Insert | 24-23 |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-1 |
