Step1: Product

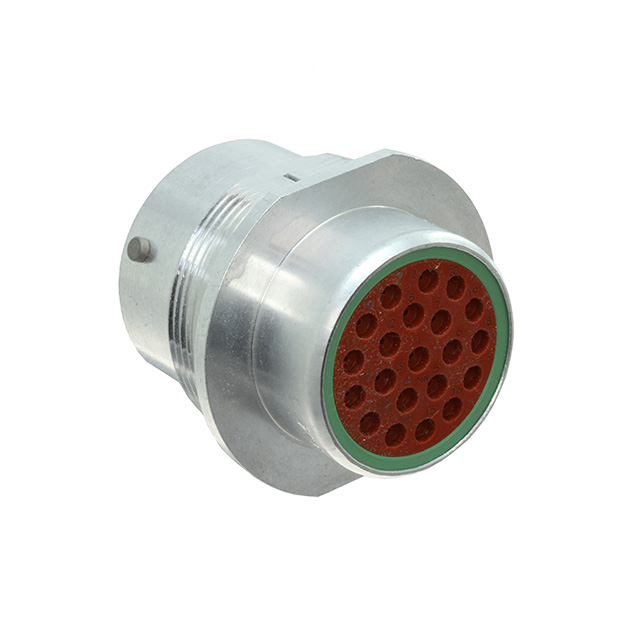

TE Connectivity Deutsch Connectors HD34-24-35SN
Image shown is a representation only
Manufacturer
Manufacturer No
HD34-24-35SN
Packaging
Bulk
Description
CONN RCPT HSG FMALE 35POS PNL MT
Detailed Description
35 Position Circular Connector Receptacle Housing Panel Mount
DataSheet
Note
Contacts Sold Separately; Jam Nut Sold Separately
Type
For Female Sockets
Series
HD30
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Contact Size
16 (3), 20 (32)
Contact Type
Crimp
Manufacturer
TE Connectivity Deutsch Connectors
Contact Shape
Circular
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Receptacle Housing
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Insert Material
Polyetherimide (PEI)
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
HD34
Number of Positions
35
Shell Size - Insert
24-35
Operating Temperature
-55°C ~ 125°C
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately; Jam Nut Sold Separately |
| Type | For Female Sockets |
| Series | HD30 |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Contact Size | 16 (3), 20 (32) |
| Contact Type | Crimp |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Contact Shape | Circular |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle Housing |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Insert Material | Polyetherimide (PEI) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | HD34 |
| Number of Positions | 35 |
| Shell Size - Insert | 24-35 |
| Operating Temperature | -55°C ~ 125°C |
