Step1: Product
TE Connectivity AMP Connectors MTL106D

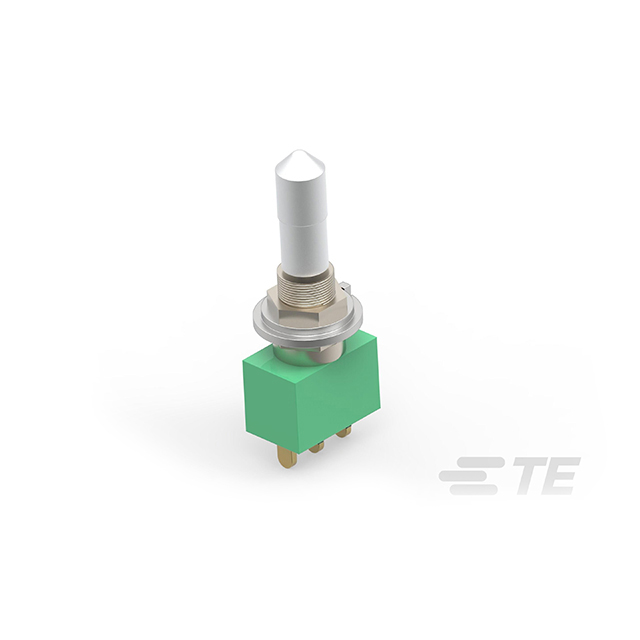

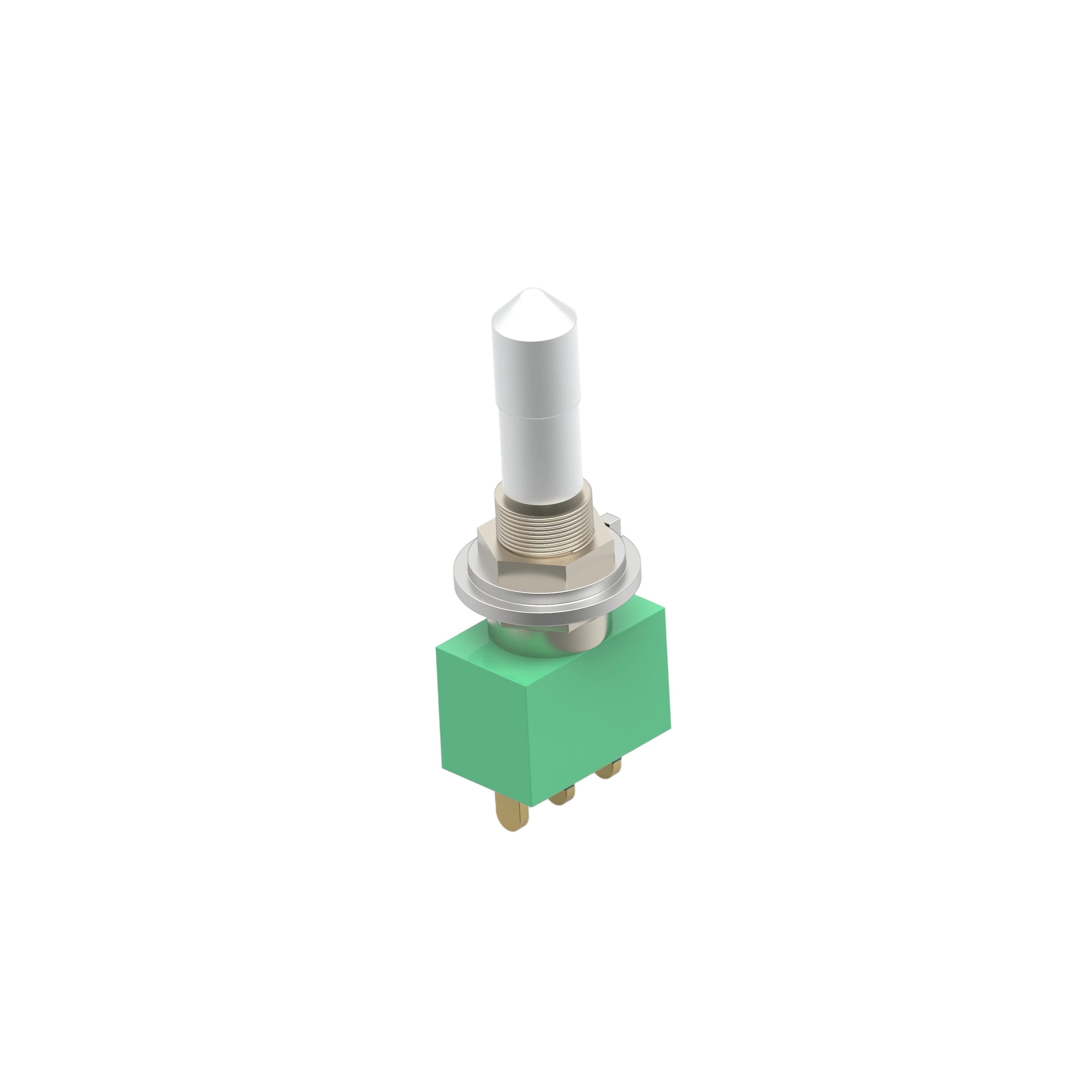

Image shown is a representation only
Manufacturer
Manufacturer No
MTL106D
Quantity
2
Availability
In Stock
Packaging
Bulk
Description
TOGGLE SW SPDT ON-NONE-ON LOCK P
Detailed Description
Toggle Switch SPDT Panel Mount
DataSheet
Mfr
TE Connectivity AMP Connectors
Series
MTL Green
Circuit
SPDT
Features
Epoxy Sealed Terminals
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Locking Lever
Mounting Type
Panel Mount
Bushing Thread
1/4-40
Actuator Length
17.00mm
Electrical Life
80,000 Cycles
Switch Function
On-On
Actuator Material
Brass, Nickel Plated
Termination Style
Solder Lug
Voltage Rating - AC
125 V
Voltage Rating - DC
28 V
Current Rating (Amps)
6A (AC), 4A (DC)
Operating Temperature
-20°C ~ 80°C
Panel Cutout Dimensions
Circular - 6.40mm Dia
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Series | MTL Green |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Locking Lever |
| Mounting Type | Panel Mount |
| Bushing Thread | 1/4-40 |
| Actuator Length | 17.00mm |
| Electrical Life | 80,000 Cycles |
| Switch Function | On-On |
| Actuator Material | Brass, Nickel Plated |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 6A (AC), 4A (DC) |
| Operating Temperature | -20°C ~ 80°C |
| Panel Cutout Dimensions | Circular - 6.40mm Dia |
