Step1: Product

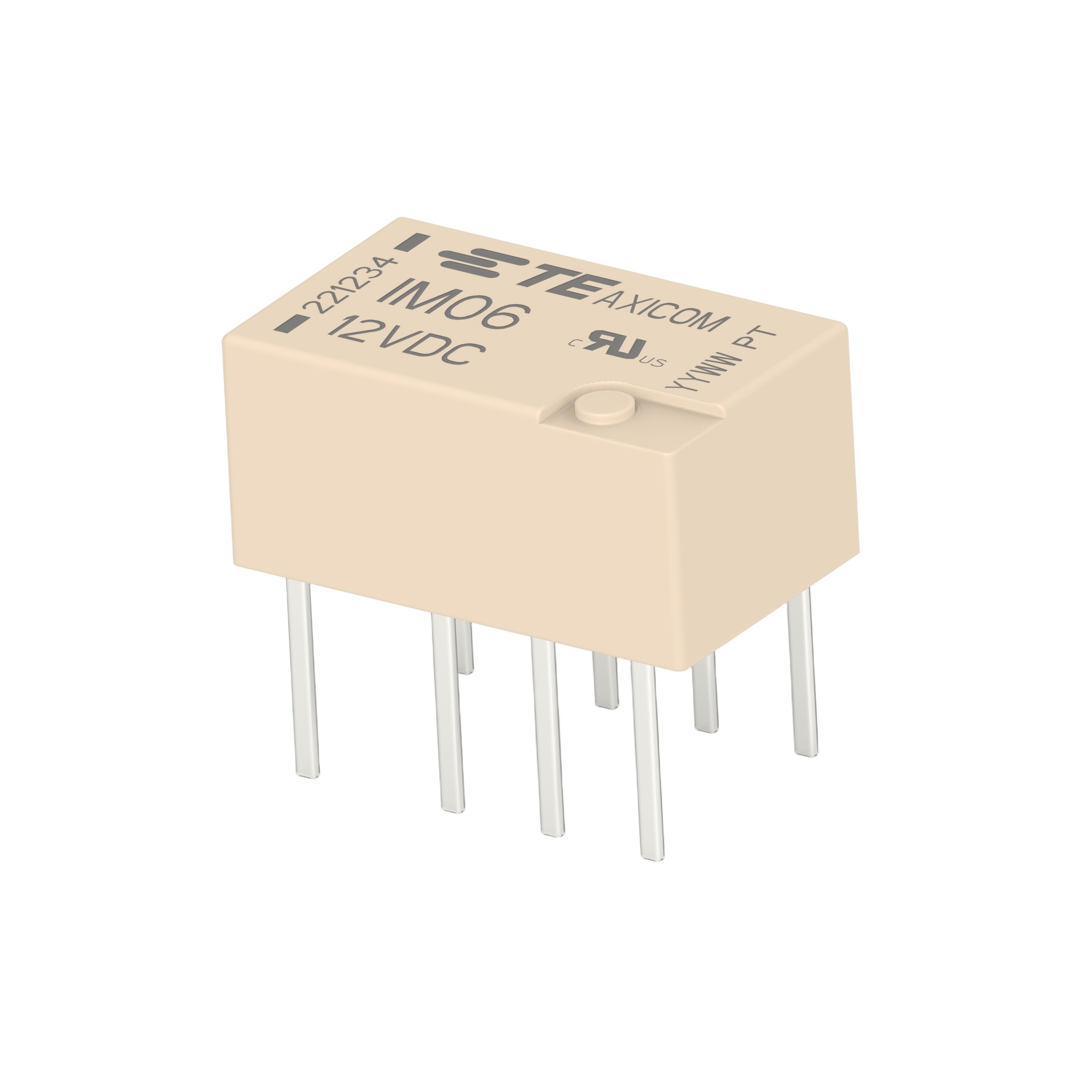

TE Connectivity AMP Connectors IM06TS
Image shown is a representation only
Manufacturer
Manufacturer No
IM06TS
Quantity
490
Availability
In Stock
Packaging
Tube
Description
TELECOM RELAY DPDT (2 FORM C) TH
Detailed Description
Telecom Relay DPDT (2 Form C) Through Hole
DataSheet
Series
IM, AXICOM
Coil Type
Non Latching
Packaging
Tube
Relay Type
Telecom
Part Status
Active
Seal Rating
Sealed - Hermetically
Coil Current
11.6 mA
Coil Voltage
12VDC
Contact Form
DPDT (2 Form C)
Manufacturer
TE Connectivity AMP Connectors
Operate Time
3 ms
Release Time
3 ms
Mounting Type
Through Hole
Approval Agency
UR
Coil Resistance
1.03 kOhms
Contact Material
Palladium (Pd), Ruthenium (Ru), Gold (Au)
Switching Voltage
250VAC, 220VDC - Max
Termination Style
PC Pin
Load - Max Switching
500VA, 440W
Must Operate Voltage
9 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
2 A
| Attribute | Value |
|---|---|
| Series | IM, AXICOM |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | Telecom |
| Part Status | Active |
| Seal Rating | Sealed - Hermetically |
| Coil Current | 11.6 mA |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Manufacturer | TE Connectivity AMP Connectors |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Mounting Type | Through Hole |
| Approval Agency | UR |
| Coil Resistance | 1.03 kOhms |
| Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Switching Voltage | 250VAC, 220VDC - Max |
| Termination Style | PC Pin |
| Load - Max Switching | 500VA, 440W |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 2 A |
