Step1: Product

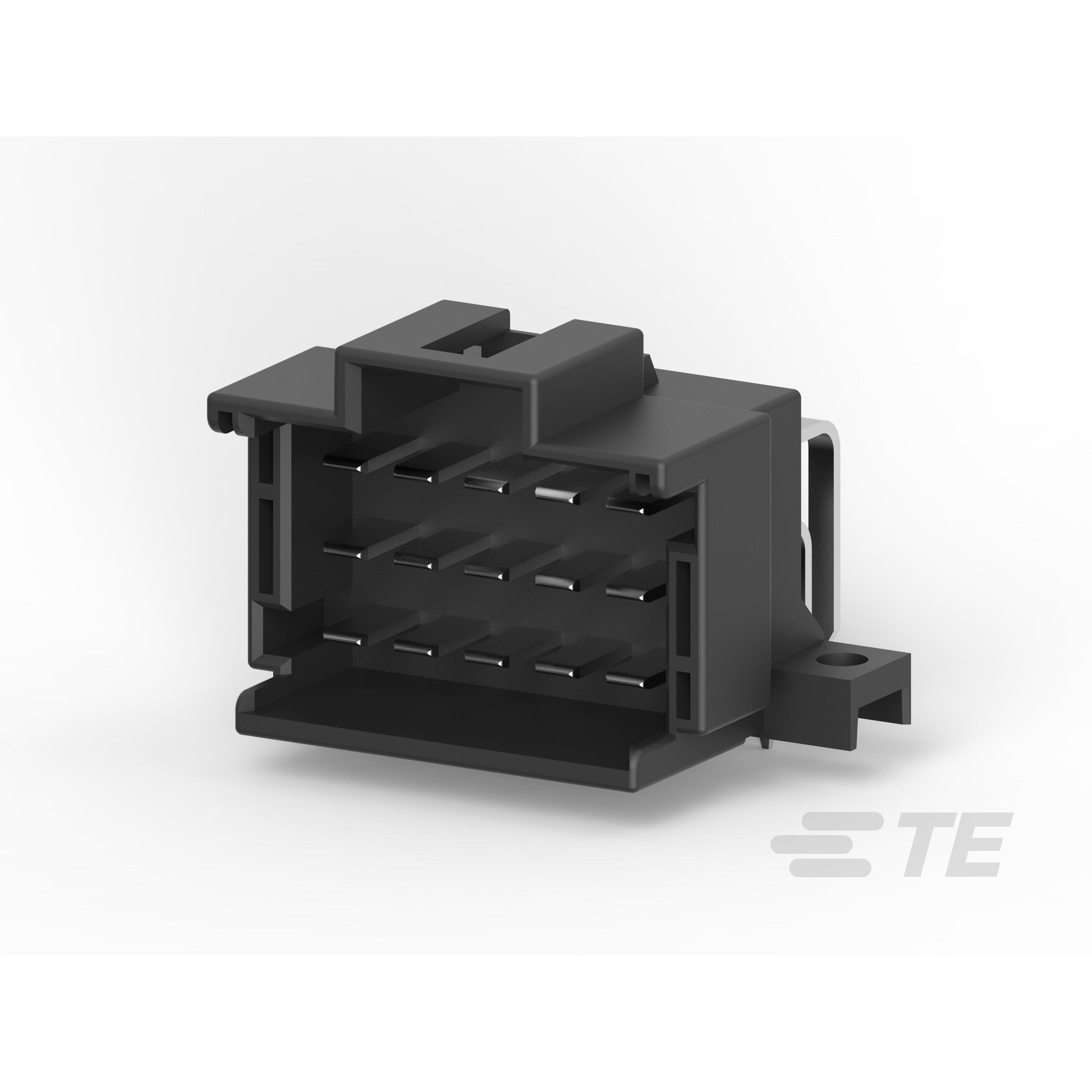

TE Connectivity AMP Connectors 966140-2
Image shown is a representation only
Manufacturer
Manufacturer No
966140-2
Quantity
3
Availability
In Stock
Packaging
Tray
Description
CONN HEADER R/A 15POS 5MM
Detailed Description
Connector Header Through Hole, Right Angle 15 position 0.197" (5.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
MCP
Features
Mounting Flange
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
3
Pitch - Mating
0.197" (5.00mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.012" (25.70mm)
Base Product Number
966140
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
15
Row Spacing - Mating
0.217" (5.51mm)
Contact Length - Post
0.118" (3.00mm)
Operating Temperature
-40°C ~ 100°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | MCP |
| Features | Mounting Flange |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 3 |
| Pitch - Mating | 0.197" (5.00mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.012" (25.70mm) |
| Base Product Number | 966140 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 15 |
| Row Spacing - Mating | 0.217" (5.51mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -40°C ~ 100°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
