Step1: Product

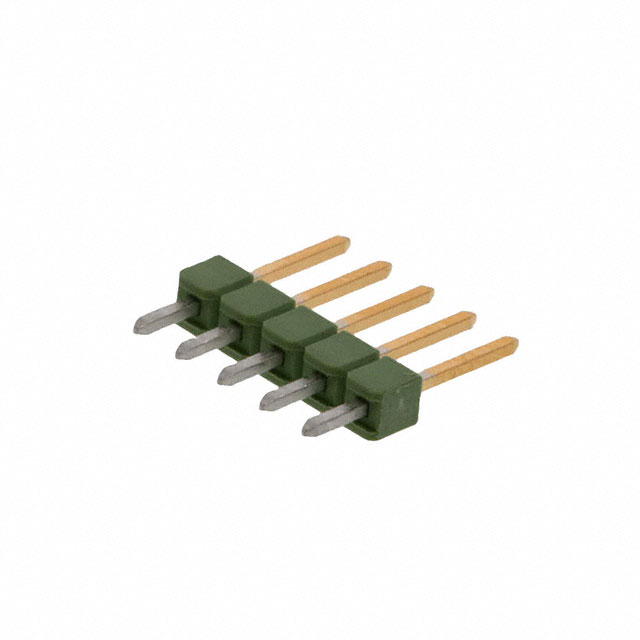

TE Connectivity AMP Connectors 826629-5
Image shown is a representation only
Manufacturer
Manufacturer No
826629-5
Packaging
Bulk
Description
CONN HEADER VERT 5POS 2.54MM
Detailed Description
Connector Header Through Hole 5 position 0.100" (2.54mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU Mod II
Packaging
Bulk
Shrouding
Unshrouded
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Green
Insulation Height
0.110" (2.79mm)
Base Product Number
826629
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
5
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
5A
Operating Temperature
-65°C ~ 105°C
Overall Contact Length
0.500" (12.70mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.264" (6.70mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
118.1µin (3.00µm)
Contact Finish Thickness - Mating
3.90µin (0.099µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU Mod II |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Green |
| Insulation Height | 0.110" (2.79mm) |
| Base Product Number | 826629 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 5 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -65°C ~ 105°C |
| Overall Contact Length | 0.500" (12.70mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.264" (6.70mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
