Step1: Product
TE Connectivity AMP Connectors 796634-5

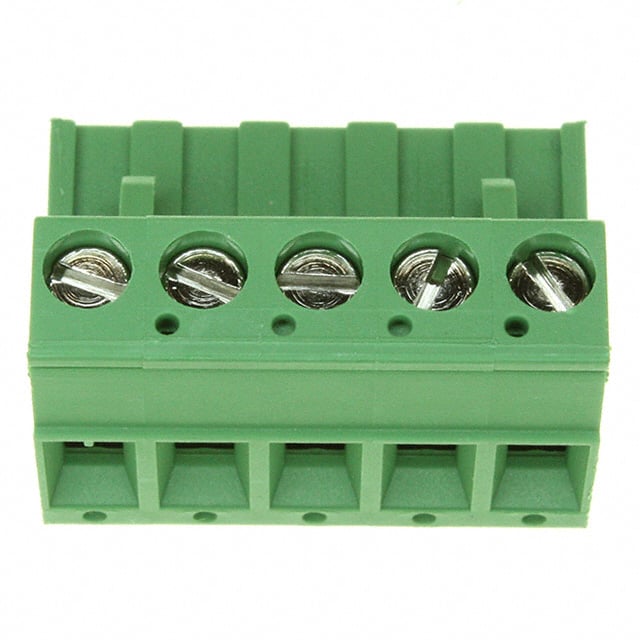

Image shown is a representation only
Manufacturer
Manufacturer No
796634-5
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
TERM BLOCK PLUG 5POS 5.08MM
Detailed Description
5 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
DataSheet
Type
Plug, Female Sockets
Color
Green
Pitch
0.200" (5.08mm)
Series
Buchanan
Features
Retention Latches (Non-Wire Side)
Packaging
Bulk
Screw Size
M3
Part Status
Active
Current - UL
15 A
Manufacturer
TE Connectivity AMP Connectors
Voltage - UL
300 V
Mounting Type
Free Hanging (In-Line)
Torque - Screw
0.79 Nm (7.0 Lb-In)
Plug Wire Entry
180°
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.610" (15.49mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
6-7.5mm
Base Product Number
796634
Number of Positions
5
Positions Per Level
5
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 110°C
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm²
0.05-3mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Series | Buchanan |
| Features | Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Screw Size | M3 |
| Part Status | Active |
| Current - UL | 15 A |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 300 V |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.610" (15.49mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 6-7.5mm |
| Base Product Number | 796634 |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 110°C |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-3mm² |
| Material Flammability Rating | UL94 V-0 |
