Step1: Product

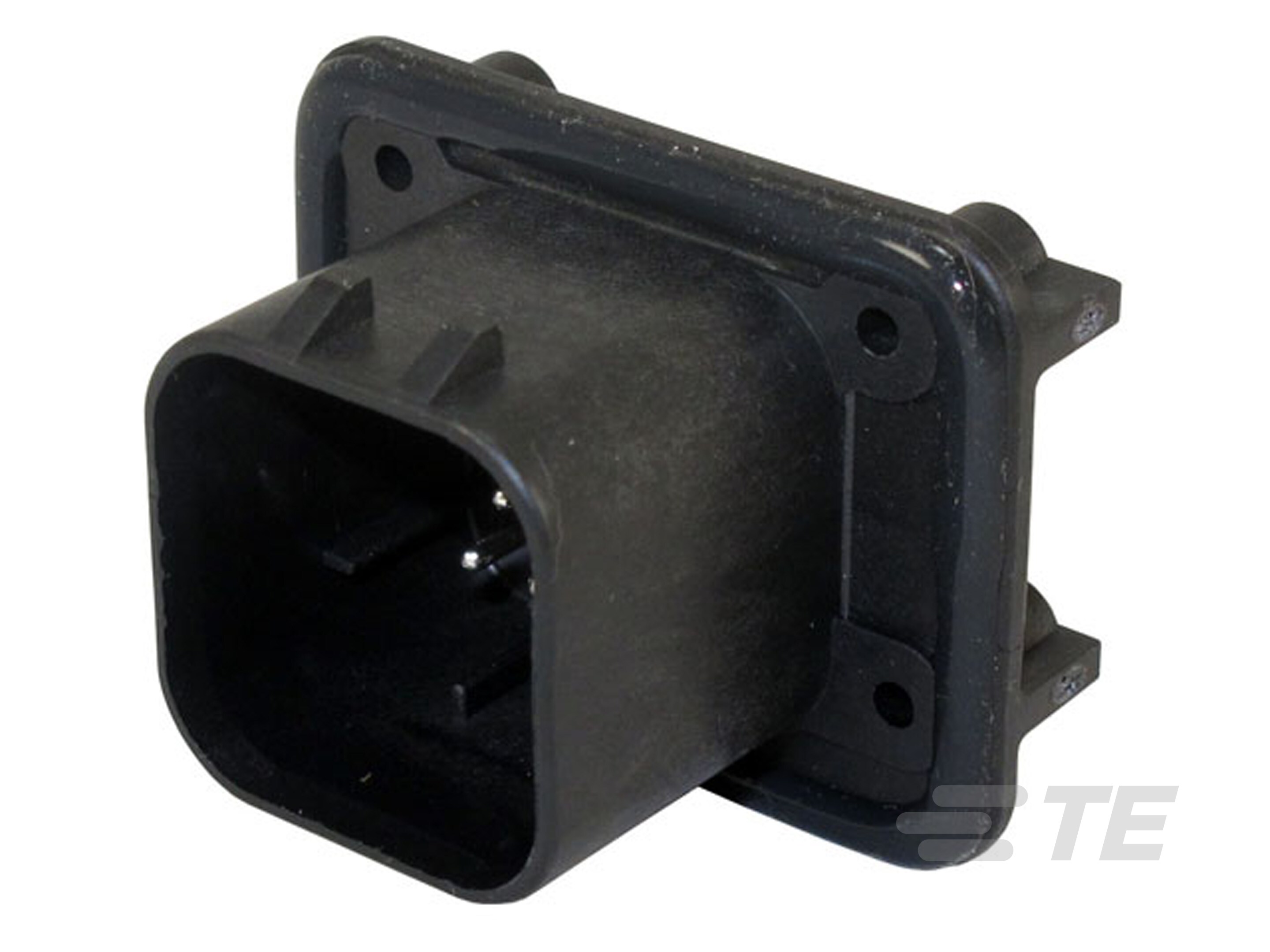

TE Connectivity AMP Connectors 776280-1
Image shown is a representation only
Manufacturer
Manufacturer No
776280-1
Quantity
313
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 8POS 4MM
Detailed Description
Connector Header Panel Mount, Through Hole, Right Angle 8 position 0.157" (4.00mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
AMPSEAL
Features
Board Guide, Sealed
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
3
Pitch - Mating
0.157" (4.00mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Black
Base Product Number
776280
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
8
Row Spacing - Mating
0.157" (4.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | AMPSEAL |
| Features | Board Guide, Sealed |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Pitch - Mating | 0.157" (4.00mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Black |
| Base Product Number | 776280 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.157" (4.00mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
