Step1: Product

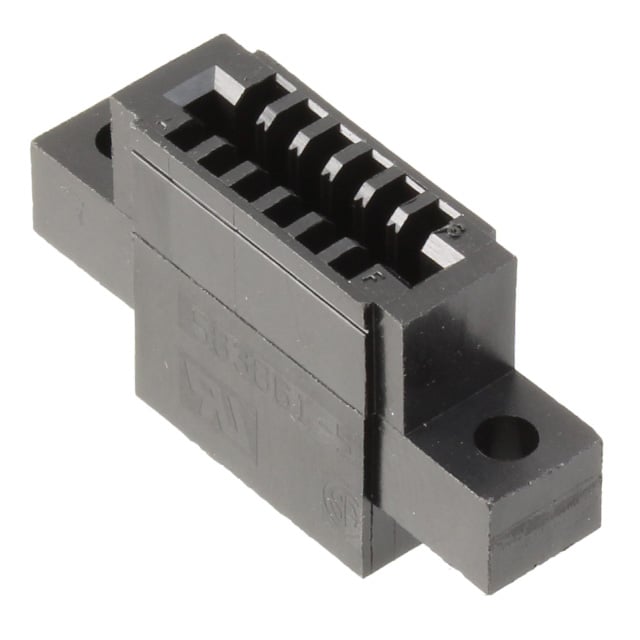

TE Connectivity AMP Connectors 583861-5

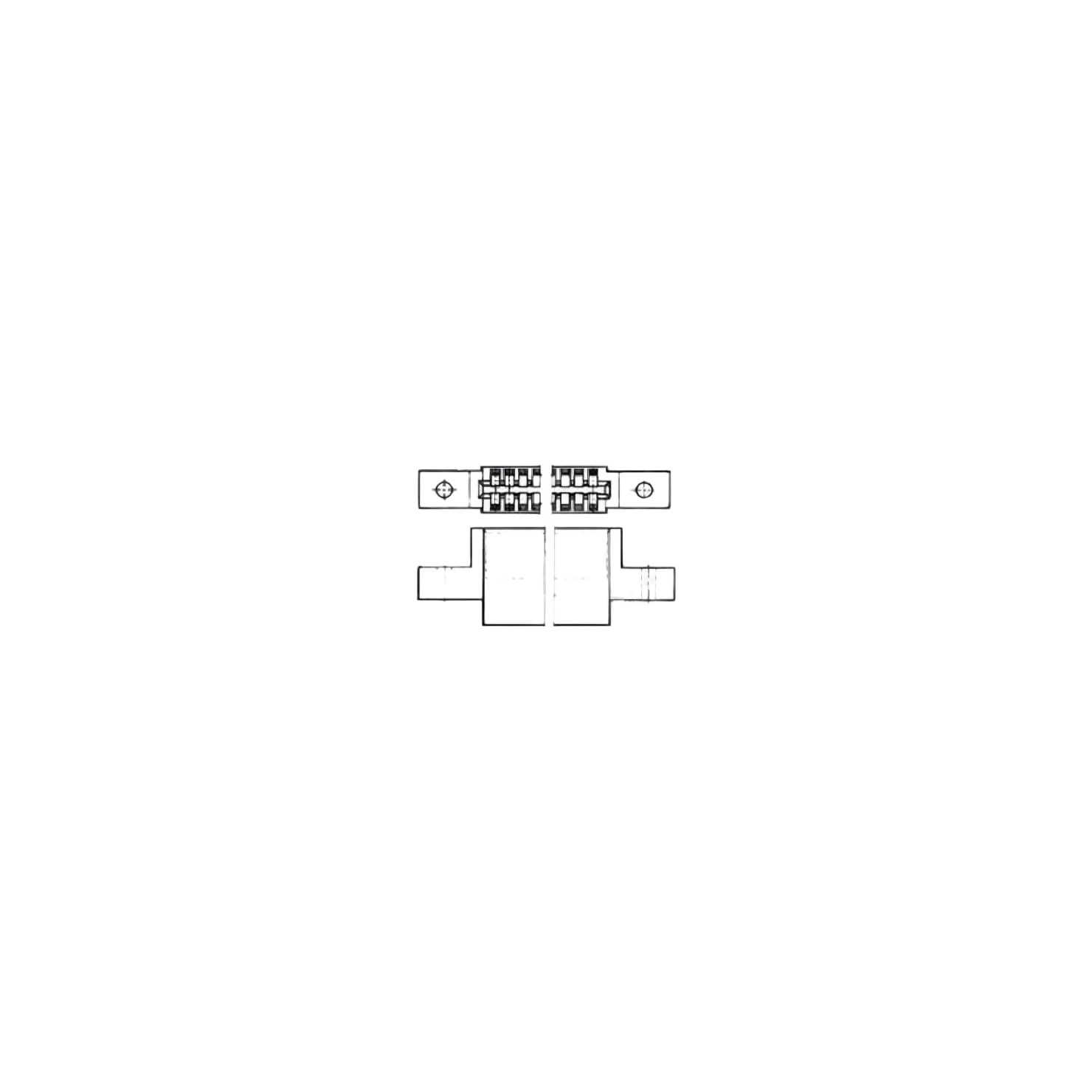

Image shown is a representation only
Manufacturer
Manufacturer No
583861-5
Quantity
25
Availability
In Stock
Packaging
Box
Description
CONN CARDEDGE HSG 12POS .100 BLK
Detailed Description
12 Position Card Edge Connector Housing Black 0.100" (2.54mm) Panel Mount
DataSheet
Note
Contacts Sold Separately
Color
Black
Pitch
0.100" (2.54mm)
Series
TWIN LEAF
Features
Flange
Card Type
Non Specified - Dual Edge
Packaging
Box
Part Status
Active
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Panel Mount
Card Thickness
0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Base Product Number
583861
Number of Positions
12
Material - Insulation
Polyester Thermoplastic, Glass Filled
Operating Temperature
-40°C ~ 85°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Color | Black |
| Pitch | 0.100" (2.54mm) |
| Series | TWIN LEAF |
| Features | Flange |
| Card Type | Non Specified - Dual Edge |
| Packaging | Box |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Panel Mount |
| Card Thickness | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) |
| Flange Feature | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Base Product Number | 583861 |
| Number of Positions | 12 |
| Material - Insulation | Polyester Thermoplastic, Glass Filled |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
