Step1: Product

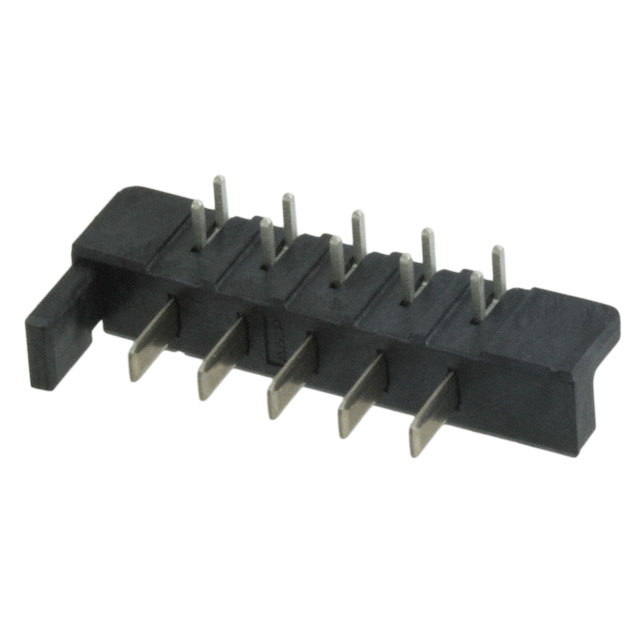

TE Connectivity AMP Connectors 5787422-1
Image shown is a representation only
Manufacturer
Manufacturer No
5787422-1
Packaging
Tray
Description
CONN HDR 5POS 5.00MM R/A SLDR
Detailed Description
5 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
DataSheet
Color
Black
Pitch
0.197" (5.00mm)
Features
Right Hand Keying
Packaging
Tray
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Male Blades
Contact Finish
Nickel
Fastening Type
Push-Pull
Number of Rows
1
Voltage Rating
12 V
Connector Style
12.0V Battery
Contact Material
Brass
Base Product Number
5787422
Number of Positions
5
Current Rating (Amps)
7 A
Material - Insulation
Liquid Crystal Polymer (LCP)
Operating Temperature
-30°C ~ 70°C
Contact Finish Thickness
74.8µin (1.90µm)
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Features | Right Hand Keying |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Blades |
| Contact Finish | Nickel |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Voltage Rating | 12 V |
| Connector Style | 12.0V Battery |
| Contact Material | Brass |
| Base Product Number | 5787422 |
| Number of Positions | 5 |
| Current Rating (Amps) | 7 A |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -30°C ~ 70°C |
| Contact Finish Thickness | 74.8µin (1.90µm) |
