Step1: Product
TE Connectivity AMP Connectors 5787190-8

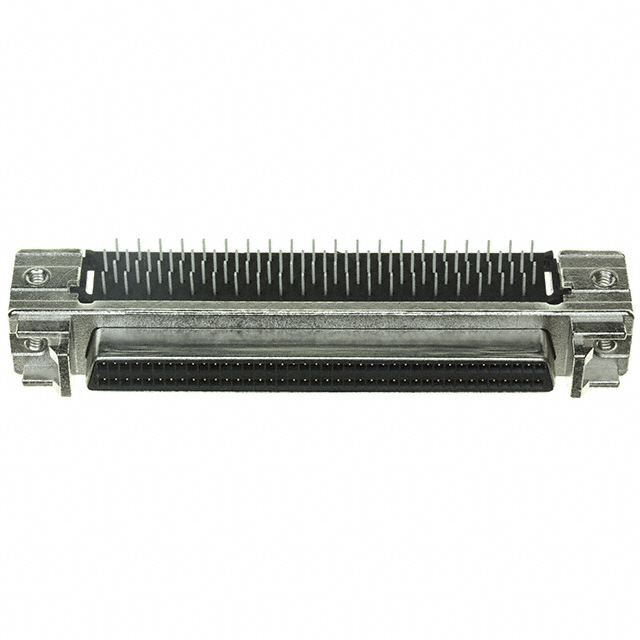

Image shown is a representation only
Manufacturer
Manufacturer No
5787190-8
Packaging
Tube
Description
CONN D-TYPE RCPT 80POS R/A SLDR
Detailed Description
80 Position D-Type Receptacle, Female Sockets Connector
DataSheet
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE .050 III
Features
Shielded
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (2-56); Latchblocks, Rails
Number of Rows
2
Voltage Rating
30V
Backset Spacing
0.146" (3.71mm)
Connector Style
D-Type
Contact Material
Phosphor Bronze
Base Product Number
5787190
Dielectric Material
Thermoplastic
Number of Positions
80
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Nickel Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
0.050 Pitch x 0.100 Row to Row
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE .050 III |
| Features | Shielded |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (2-56); Latchblocks, Rails |
| Number of Rows | 2 |
| Voltage Rating | 30V |
| Backset Spacing | 0.146" (3.71mm) |
| Connector Style | D-Type |
| Contact Material | Phosphor Bronze |
| Base Product Number | 5787190 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 80 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
