Step1: Product

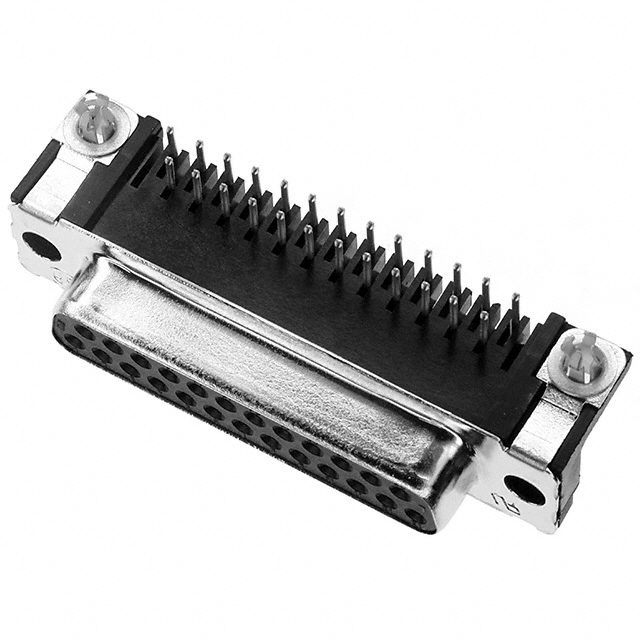

TE Connectivity AMP Connectors 5747846-2
Image shown is a representation only
Manufacturer
Manufacturer No
5747846-2
Quantity
65
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB RCPT 25POS R/A SOLDER
Detailed Description
25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE HD-20
Features
Board Lock, Ground Strap
Packaging
Tray
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
125V
Backset Spacing
0.318" (8.08mm)
Connector Style
D-Sub
Contact Material
Phosphor Bronze
Base Product Number
5747846
Dielectric Material
Thermoplastic
Number of Positions
25
Current Rating (Amps)
6A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE HD-20 |
| Features | Board Lock, Ground Strap |
| Packaging | Tray |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 125V |
| Backset Spacing | 0.318" (8.08mm) |
| Connector Style | D-Sub |
| Contact Material | Phosphor Bronze |
| Base Product Number | 5747846 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 25 |
| Current Rating (Amps) | 6A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
