TE Connectivity AMP Connectors 532956-8
Image shown is a representation only
Manufacturer
Manufacturer No
532956-8
Packaging
Tube
Description

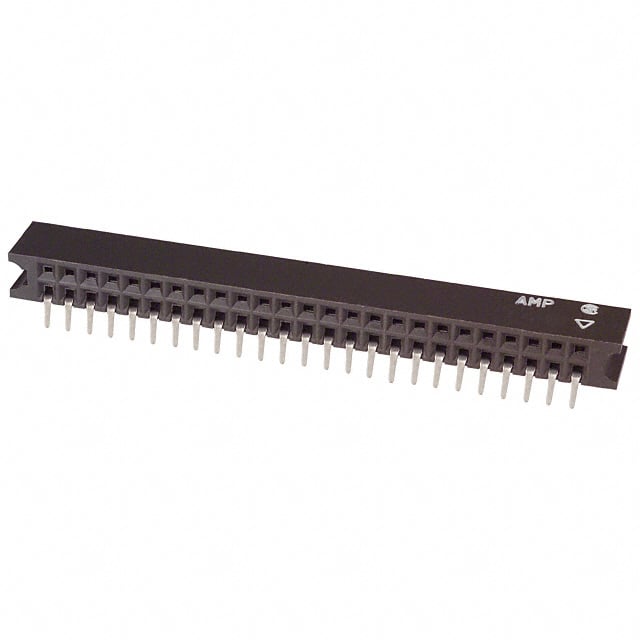

CONN RCPT 50POS 0.1 GOLD PCB R/A
Detailed Description
50 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board
Series
AMPMODU Mod II
Features
Guide Pin Ears
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.238" (6.05mm)
Base Product Number
532956
Number of Positions
50
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.115" (2.92mm)
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Post
50.0µin (1.27µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board |
| Series | AMPMODU Mod II |
| Features | Guide Pin Ears |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.238" (6.05mm) |
| Base Product Number | 532956 |
| Number of Positions | 50 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.115" (2.92mm) |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
