Step1: Product

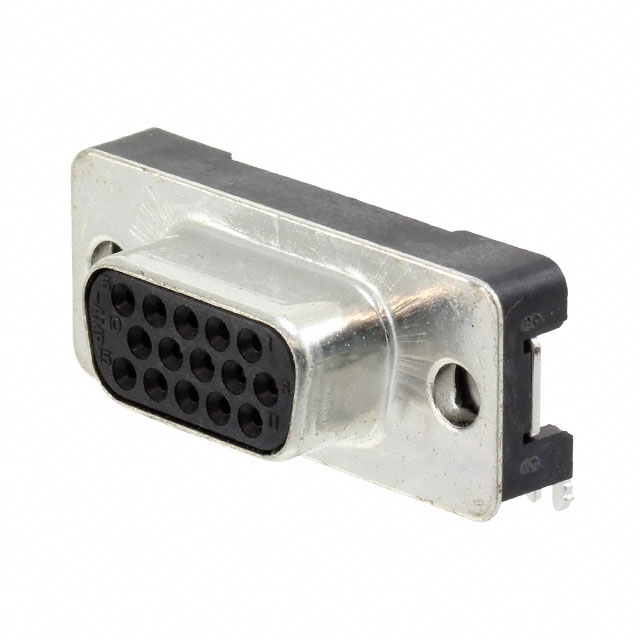

TE Connectivity AMP Connectors 5177802-3
Image shown is a representation only
Manufacturer
Manufacturer No
5177802-3
Packaging
Box
Description
CONN D-SUB HD RCPT 15P R/A SLDR
Detailed Description
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Datasheet
Mfr
TE Connectivity AMP Connectors
Series
AMPLIMITE HD-20 U-Slim
Features
Board Lock
Packaging
Box
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (4-40)
Number of Rows
3
Voltage Rating
125V
Connector Style
D-Sub, High Density
Contact Material
Copper Alloy
Base Product Number
5177802
Dielectric Material
Thermoplastic
Number of Positions
15
Current Rating (Amps)
2A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Shell Size, Connector Layout
1 (DE, E) High Density
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Series | AMPLIMITE HD-20 U-Slim |
| Features | Board Lock |
| Packaging | Box |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 3 |
| Voltage Rating | 125V |
| Connector Style | D-Sub, High Density |
| Contact Material | Copper Alloy |
| Base Product Number | 5177802 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 15 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
