Step1: Product

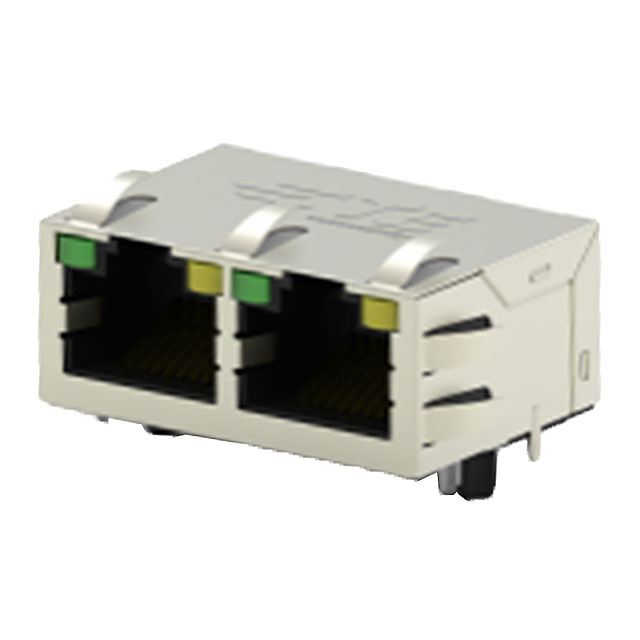

TE Connectivity AMP Connectors 5-2337994-3
Image shown is a representation only
Manufacturer
Manufacturer No
5-2337994-3
Packaging
Tray
Description
CONN JACK 2PORT PCB
Detailed Description
2 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
DataSheet
Features
Board Guide
LED Color
Green - Yellow
Packaging
Tray
Shielding
Shielded, EMI Finger
Orientation
90° Angle (Right)
Part Status
Active
Termination
Solder
Applications
10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Tab Direction
Up
Connector Type
RJ45
Contact Finish
Gold
Number of Rows
1
Number of Ports
2
Shield Material
Brass
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP)
Height Above Board
0.531" (13.49mm)
Base Product Number
2337994
Operating Temperature
-40°C ~ 85°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Cores per Jack
4
| Attribute | Value |
|---|---|
| Features | Board Guide |
| LED Color | Green - Yellow |
| Packaging | Tray |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Termination | Solder |
| Applications | 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 2 |
| Shield Material | Brass |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Height Above Board | 0.531" (13.49mm) |
| Base Product Number | 2337994 |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Cores per Jack | 4 |
