Step1: Product

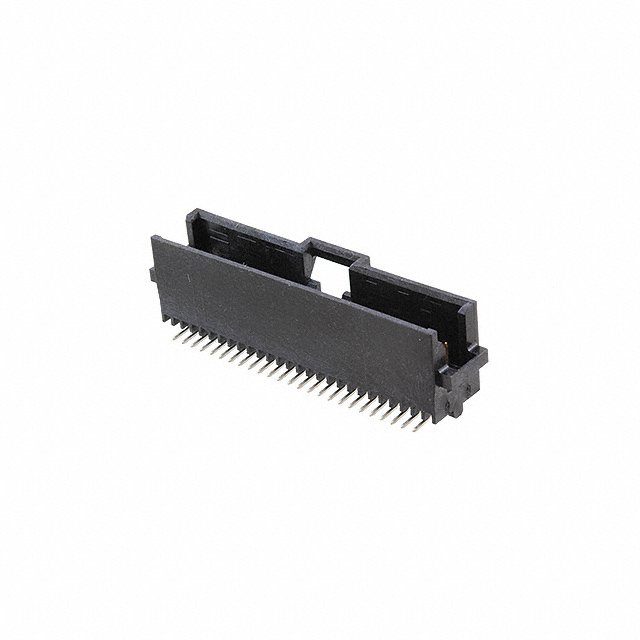

TE Connectivity AMP Connectors 5-147377-5
Image shown is a representation only
Manufacturer
Manufacturer No
5-147377-5
Quantity
250
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD 50POS 1.27MM
Detailed Description
Connector Header Surface Mount 50 position 0.050" (1.27mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU System 50
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Medical, Telecommunications
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
30VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.435" (11.05mm)
Base Product Number
147377
Insulation Material
Polyphthalamide (PPA)
Number of Positions
50
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Operating Temperature
-65°C ~ 105°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.125" (3.18mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU System 50 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 30VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.435" (11.05mm) |
| Base Product Number | 147377 |
| Insulation Material | Polyphthalamide (PPA) |
| Number of Positions | 50 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Operating Temperature | -65°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.125" (3.18mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
